Surface mounting enclosure, 1 mounting location
- 0508-4989
- |
- 216535
0
piece
in stock
Don’t have an account? Create one
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

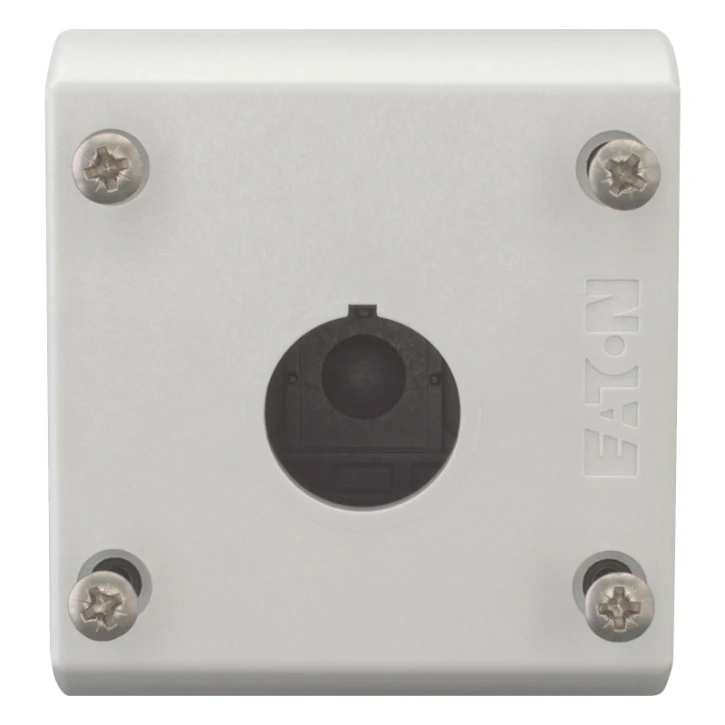

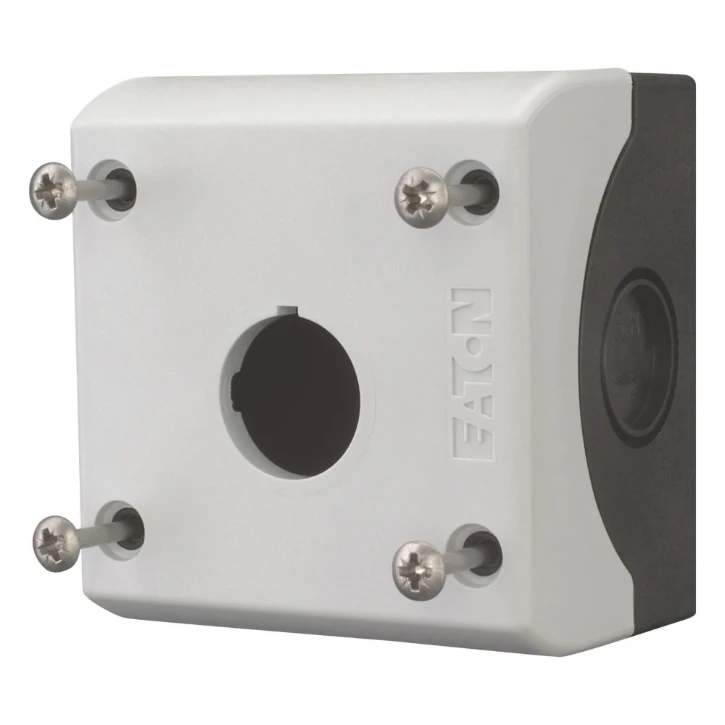

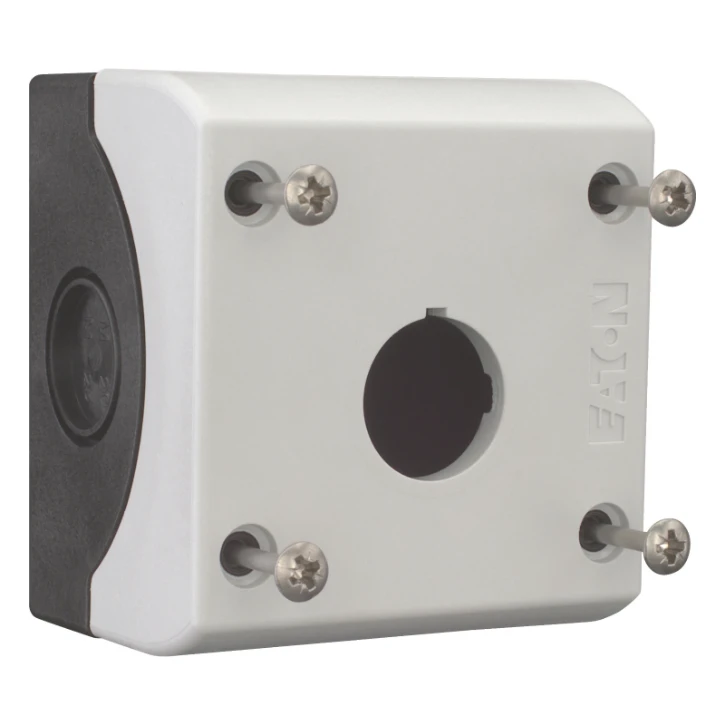

Surface mounting enclosure, 1 mounting location
Surface mounting enclosure, 1 mounting location
Ordercode YESSS
0508-4989
Product code
216535
EAN code
04015082165352
Product group
Enclosure for control circuit devices
Brand
Eaton
Serie
RMQ M22
Type
M22-I1
Product description

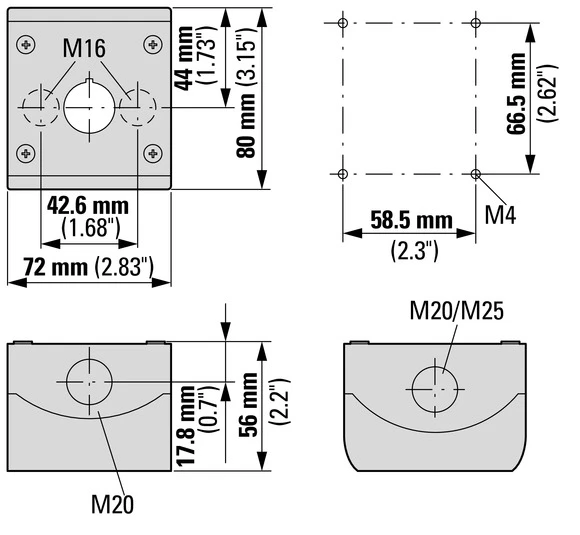

Surface mounting enclosure, Housing: Insulated material, With high-grade steel screws, Number of locations: 1, Cable entry: rear: 2 x M16, at top: 1 x M20, lateral: 2 x M20/M25 (1 x each side), Degree of Protection: IP66, IP67, IP69K, Color RAL Value: RAL 7035, Color: Enclosure base anthracite, Connection to SmartWire-DT: no, For use with: 1 x 22.5, For use with: (Illuminated) pushbuttons, (Illuminated) selector switches, Key-operated pushbuttons, Indicator light, controlled stop/emergency-stop buttons with yellow label
Product specifications
Number of command positions
1
Construction type housing
Surface mounted housing
Diameter openings
22.5 mm
Degree of protection (IP)
IP67/IP69K
Degree of protection (NEMA)
12
Housing material
Plastic
Colour housing cover
Grey
Height
72 mm
Width
82 mm
Depth
74 mm
Housing material quality
Other
