Front element for push button Eaton RMQ M22
Add to selection
General information
Ordercode YESSS
6029-7175
Product code
105227
EAN code
4015081050253
Product group
Front element for push button
Brand
Eaton
Serie
RMQ M22
Type
M22-DDL-S-X226/X26
Doppeldrucktaste, RMQ-Titan, Tasten und Leuchtmelder vorstehend, tastend, Vorsatzlinse weiß, schwarz,
Doppeldrucktaste, RMQ-Titan, Tasten und Leuchtmelder vorstehend, tastend, Vorsatzlinse weiß, schwarz, schwarz, beschriftet, Frontring Titan, Pfeil rec
Product description

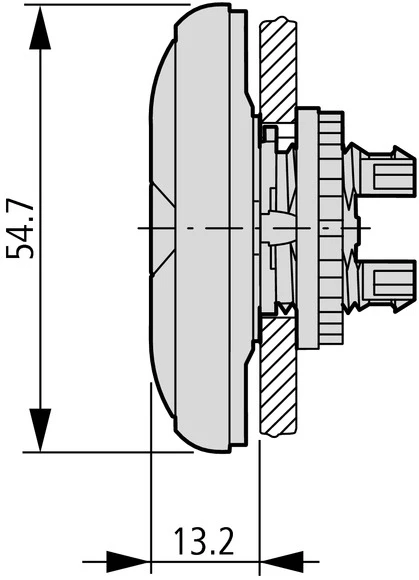

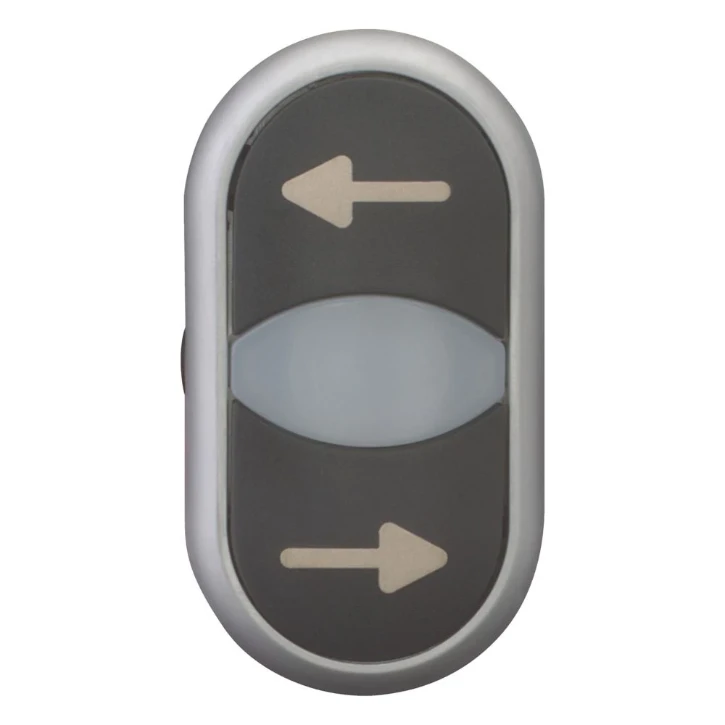

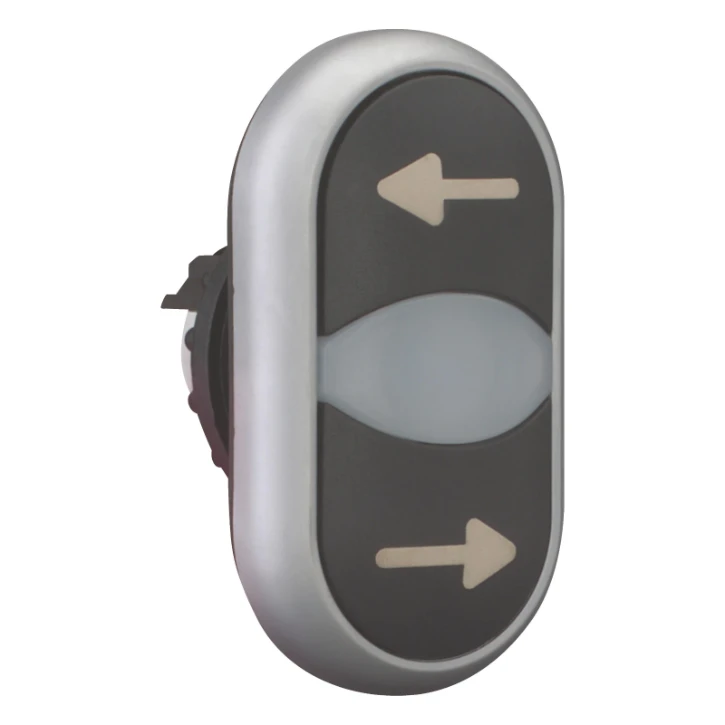

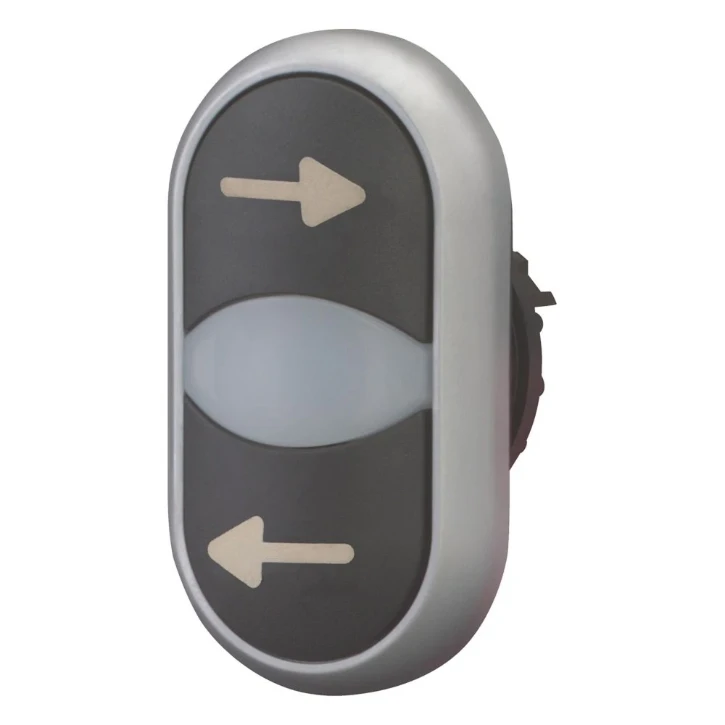

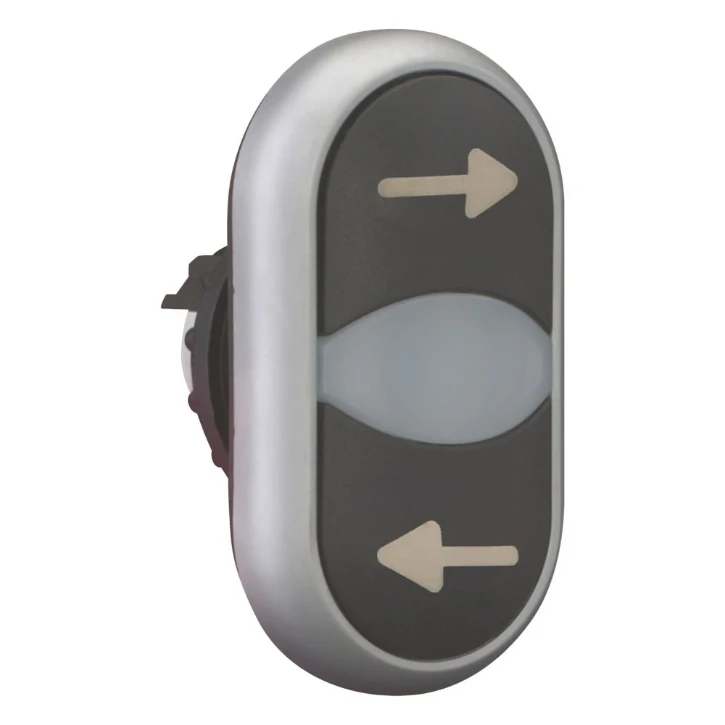

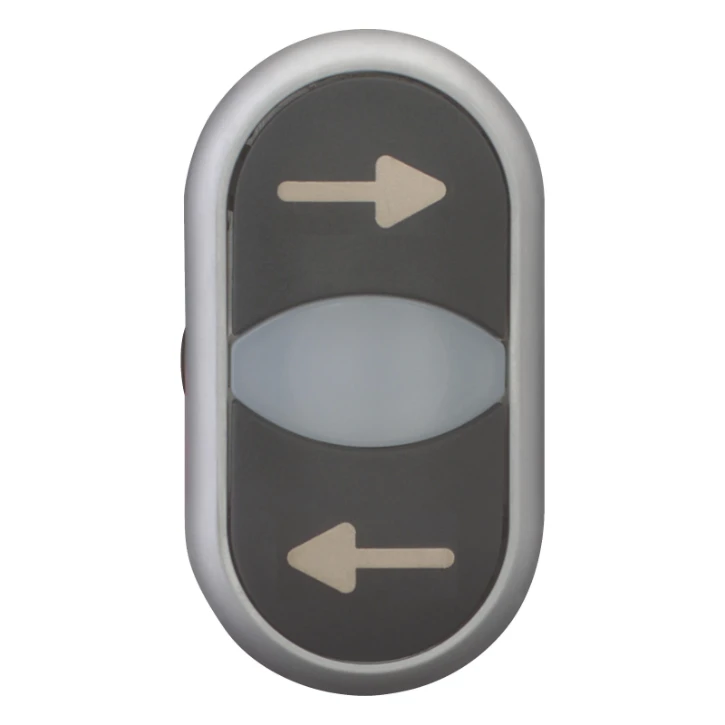

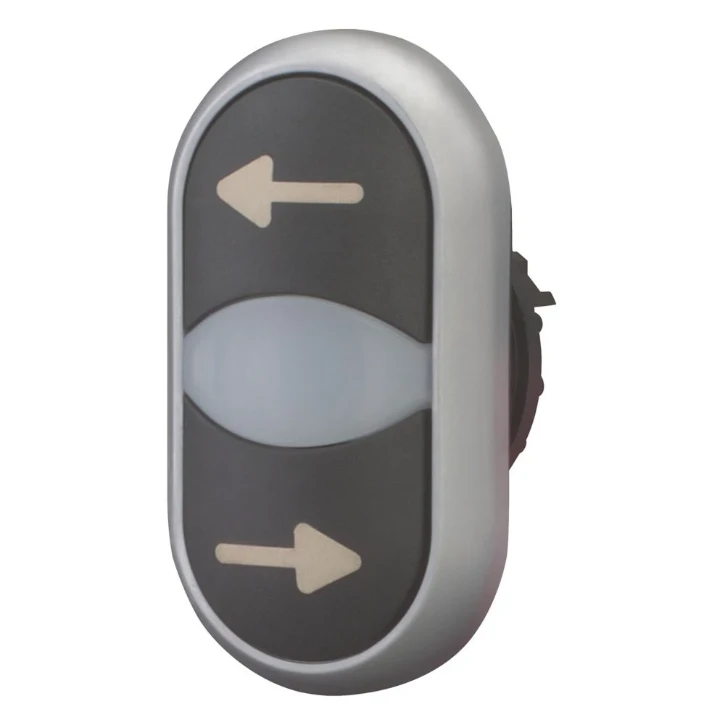

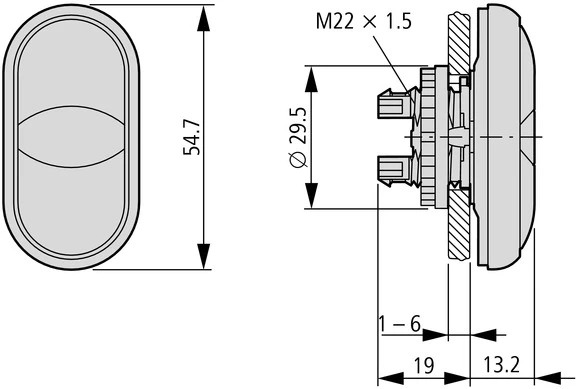

Double actuator pushbutton, Product range: RMQ-Titan, Single unit, Design: Actuators and indicator lights non-flush, momentary, Description: White lens, button plate: black, black, Button plate inscribed, Degree of Protection: IP66, Bezel: titanium, Connection to SmartWire-DT: yes, with SWD-RMQ connections, Front dimensions: 29,7 x 54,7, Standards: IEC/EN 60947, VDE 0660
Product specifications
Number of command positions
2
Hole diameter
22.5 mm
Degree of protection (IP), front side
IP66
Switching function latching
No
With front ring
Yes
Material front ring
Plastic
Colour button
Black
Construction type lens
Oval
Width opening
0 mm
With protective cover
No
Height opening
0 mm
Type of button
Flat
Labelled
Yes
Suitable for lighting
Yes
Spring-return
Yes
Colour front ring
Titanium
Degree of protection (NEMA), front side
4X
