General information

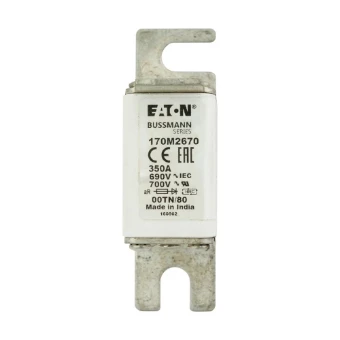

Fuse-link, high speed, 350 A, AC 690 V, DIN 00,
Fuse-link, high speed, 350 A, AC 690 V, DIN 00, aR, DIN, IEC, single i
Ordercode YESSS
0539-8742
Product code
170M2670
EAN code
05027590442473
Product group
HRC fuse
Brand
Eaton
Serie
Bussmann High Speed Square Body
Type
FUSE 350A 690V 00TN/80 AR UR
Product description
Fuse, Fuse-link, high speed, 350 A, AC 690 V, DIN 00, aR, DIN, IEC, single (top) indicator system, square body with offset bolted tags (slotted), live gripping lugs, indicator style T for microswitch, semiconductor protection, DIN 43653, IEC 60269-4, Breaking Capacity 200 kA
Product specifications
Fuse construction type according to IEC 60269
00
Type of current
AC
Rated voltage AC
690 V
Rated current
350 A
Utilization category according to IEC 60269
aR
Breaking capacity
200 kA
Colour code
None
Type of fuse status indicator
Top fuse status indicator
Power loss at rated current
60 W
Mounting holes
M10
Centre-to-centre distance of connections
78 mm
Fuse system according to IEC 60269
Other
