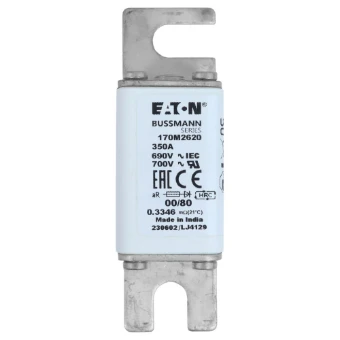

HRC fuse Eaton Bussmann High Speed Square Body
Add to selection
General information
Ordercode YESSS
0539-8726
Product code
170M2620
EAN code
5027590442299
Product group
HRC fuse
Brand
Eaton
Serie
Bussmann High Speed Square Body
Type
FUSE 350A 690V 00/80 AR UR
Sicherungseinsatz, superflink, 250 A, AC 690 V, 200 kA, DIN
Sicherungseinsatz, superflink, 250 A, AC 690 V, 200 kA, DIN 00, 30 x 51 x 100 mm, aR, DIN, IEC, einfacher Kennmelder
Product description
Fuse, Fuse-link, high speed, 250 A, AC 690 V, DIN 00, 30 x 51 x 100 mm, aR, DIN, IEC, single indicator, square body with offset bolted tags (slotted), semiconductor protection, DIN 43653, IEC 60269-4, Breaking Capacity 200 kA
Product specifications
Fuse construction type according to IEC 60269
00
Type of current
AC
Rated voltage AC
690 V
Rated current
350 A
Utilization category
aR (accompanied semiconductor protection)
Breaking capacity
200 kA
Colour code
None
Type of fuse status indicator
Top fuse status indicator
Power loss at rated current
60 W
Mounting holes
M10
Centre-to-centre distance of connections
78 mm
Sicherungssystem nach IEC 60269
