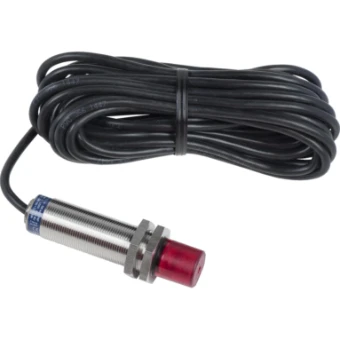

Optical fibre sensor/optical fibre amplifier Schneider Electric OsiSense XU
Add to selection
General information
Ordercode YESSS
6037-0487
Product code
XU2N18PP9AAL5R
EAN code
3389118380912
Product group
Optical fibre sensor/optical fibre amplifier
Brand
Schneider Electric
Serie
OsiSense XU
Type
XU2N18PP9AAL5R
XU2-Optoe. Sensor, Empfänger, Sn 15m, 12-24 V DC, 5m Kabel,
XU2-Optoe. Sensor, Empfänger, Sn 15m, 12-24 V DC, 5m Kabel, Sonderausführung
Product description
XU2-Optoelektronischer Sensor, Design 18mm, Empfänger, Schaltabstand Sn 15m, Spannungsversorgung 12-24V AC/DC, 5m Anschlussleitung, Sonderausführung.
Product specifications
Number of contact energized outputs with signalling function
0
Analogue output 0 V ... 10 V
No
Type of electric connection
Other
Type of switching output
Other
Type of switch function
Other
Number of semiconductor outputs with signalling function
1
Analogue output 0 mA ... 20 mA
No
Analogue output 4 mA ... 20 mA
No
Analogue output -10 V ... +10 V
No
With blanking function
No
Operation agent-safety class
Safety class 0
Rated control supply voltage DC
12 - 24 V
Voltage type
AC/DC
Length amplifier
62 mm
Diameter sensor
18 mm
Indication
Other
Setting procedure
Other
Construction type housing
Cylinder, screw-thread
Laser protection class
Other
No-load current
35 mA
Type of light
Laser diode, infrared light
Max. output current
35 mA
Nominal operating distance
20000 mm
Switching frequency
500 Hz
Degree of protection (IP)
IP67K
Ambient temperature
-25 - 55 °C
Housing material
Plastic
Material of cable sheath
Other
Material fibre optics core
Plastic
With time function
No
