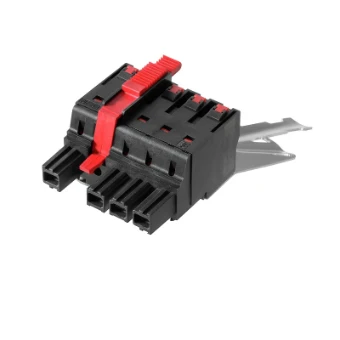

Cable connector WEIDMÜLLER
Add to selection
General information
Ordercode YESSS
6080-8032
Product code
2627750000
EAN code
4050118631746
Product group
Cable connector
Brand
WEIDMÜLLER
Product specifications
Type of connection
Flexible PCB-connector
Contact type
Bus
Number of poles
4
Modular spacing contacts
10.16 mm
Modular spacing connections
10.16 mm
Angle contact/conductor connection
180° (horizontal)
Rated current In
70 A
Rated voltage
1000 V
Rated surge voltage
8 kV
Over voltage category
II
Pollution degree
2
Connectable conductor cross section fine-strand without cable end sleeve
2.5 - 16 mm²
Connectable conductor cross section fine-strand with cable end sleeve
2.5 - 16 mm²
Connectable conductor cross section solid-core
2.5 - 10 mm²
Connectable conductor cross section multi-wired
10 - 16 mm²
Type of electric connection
Push-in clamp connection
Connectable cable type
Tubular cable
Material of contact surface
Silver
Material contact
Copper
Material insulation body
Polyamide (PA)
Material housing
Plastic
Coating housing
Other
Colour housing
Black
Operating temperature
-50 - 120 °C
Degree of protection (IP), mounted
IP20
