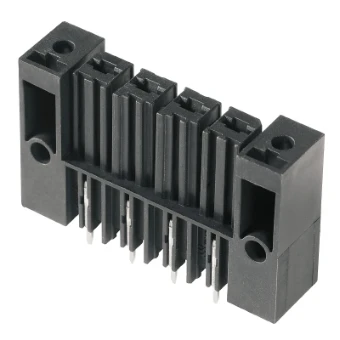

Printed circuit board connector WEIDMÜLLER OMNIMATE Power - Serie BV/SV 7.62HP
Add to selection
General information
Ordercode YESSS
6079-9504
Product code
1928870000
EAN code
4032248578221
Product group
Printed circuit board connector
Brand
WEIDMÜLLER
Serie
OMNIMATE Power - Serie BV/SV 7.62HP
Type
BVL 7.62HP/05/180SFI 3.5SN BK BX
Leiterplattensteckverbinder (Platinenanschluss), 7.62 mm, Polzahl: 5, Abgangswinkel: 180°
Leiterplattensteckverbinder (Platinenanschluss), 7.62 mm, Polzahl: 5, Abgangswinkel: 180°
Product description
Steckbarer Leiterplatten-Anschluss mit innovatiever Anschlusstechnologie für eine sichere und intuitive Handhabung.
Product specifications
Type of connection
Flexible PCB-connector
Connector model
Fixed connector
Contact type
Bus
Number of poles
5
Number of plug-in contact rows
1
Modular spacing contacts
7.62 mm
Modular spacing connections
7.62 mm
Angle PCB/contact
90° (upwards vertical)
Rated current In
41 A
Rated voltage
630 V
Rated surge voltage
6 kV
Overvoltage category
III
Pollution degree
2
Material of contact surface
Tin
Type of electric connection
THR connection
Length pin
3.5 mm
Material insulation body
Polyamide (PA)
Housing colour
Black
Operating temperature
-50 - 130 °C
Type of PCB fastening
Other
Type of fastening
Solder
Type of banding
Other
