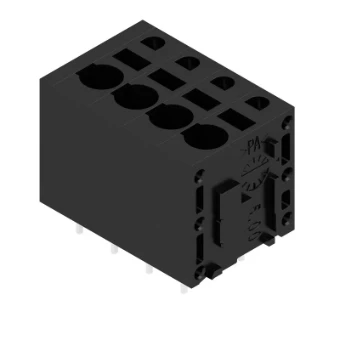

Printed circuit board terminal WEIDMÜLLER
Add to selection
General information
Ordercode YESSS
6078-6128
Product code
1425560000
EAN code
4050118229783
Product group
Printed circuit board terminal
Brand
WEIDMÜLLER
Product specifications
Height
18.7 mm
Number of electrical connections
4
Modular spacing connections
5 mm
Angle PCB/conductor connection
90° (upwards vertical)
Rated current In
24 A
Rated voltage
320 V
Rated surge voltage
4 kV
Over voltage category
II
Pollution degree
2
Connection type conductor
Push-in clamp connection
Connectable conductor cross section solid-core
0.5 - 2.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25 - 2.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.25 - 2.5 mm²
Connection type PCB
Soldering connection
Material connection surface
Tin
Length pin
3.5 mm
Material insulation body
Polyamide (PA)
Colour housing
Black
Operating temperature
-50 - 120 °C
Type of PCB fastening
Other
Type of fastening
Solder
Type of banding
Other
Degree of protection (IP), mounted
IP20
