General information

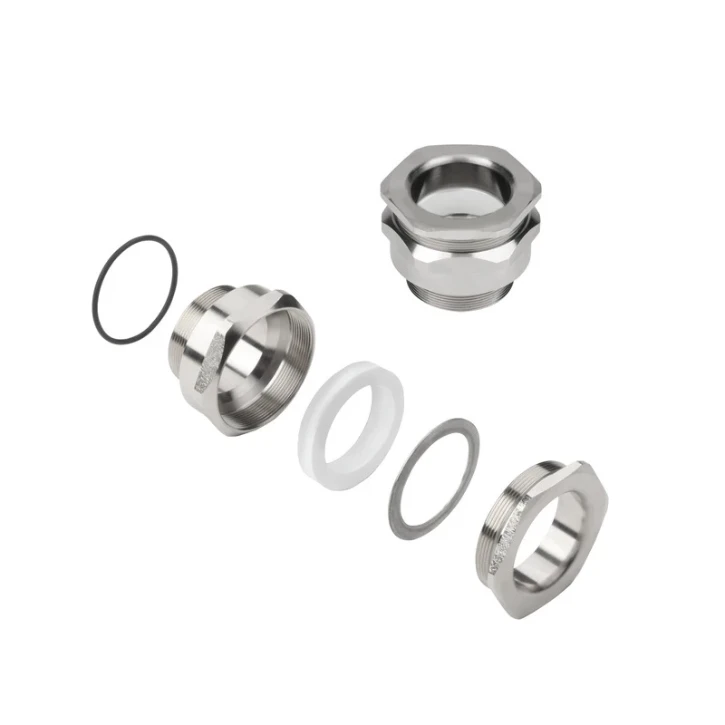

Ex-Kabelverschraubung (Metall), gerade, M 50, 16 mm, OD min. 33.1
Ex-Kabelverschraubung (Metall), gerade, M 50, 16 mm, OD min. 33.1 - OD max. 44.1 mm, IP66, IP68 - 2,5 bar, Messing, vernickelt
Ordercode YESSS
6077-9513
Product code
1136670000
EAN code
4032248968237
Product group
Cable gland
Brand
WEIDMÜLLER
Serie
KSG (Klippon Standard Ex-Kabelverschraubung)
Type
KSG M50 BS O NI 2 G50
Product description
Kabelverschraubung für den Einsatz in explosionsgefährdeten Bereichen (Ex e und Ex d). Die Verschraubung kann mit armierten oder nicht armierten Kabeln verwendet werden.
Product specifications
Material quality
Brass
Thread type
Metric
Nominal thread size metric/PG
50
Suitable for cable diameter
33.1 - 44.1 mm
With strain relief
Yes
Material
Metal
Degree of protection (IP)
IP66
Shock resistant
Yes
Halogen free
Yes
With locknut
No
Model
Straight
Bend radius protection/trumpet flare
Yes
Thread length
16 mm
Nominal thread size inch/gas pipe thread
Other
Pitch thread
1.5 mm
Wrench width
65 mm
Hexagon angular dimension
75.06 mm
RAL-number
7001
Surface protection
Nickel-plated
Glass-fibre reinforced
No
Colour
Silver
Multi seal area
No
Flat cable coupling
No
Type of sealing
Sealing ring
Separable screw gland
No
Working temperature
-60 - 180 °C
Explosion-tested version
Yes
For Ex-zone gas
1, 2
For Ex-zone dust
21, 22
For armoured cable
No
EMC-version
No
Screened
No
