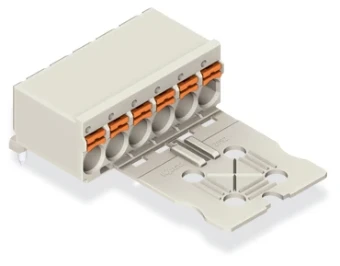

Printed circuit board connector WAGO
Add to selection
General information
Ordercode YESSS
6045-2500
Product code
2092-1359
EAN code
4050821869474
Product group
Printed circuit board connector
Brand
WAGO
1-conductor THT female connector angled push-button Push-in CAGE CLAMP
1-conductor THT female connector angled push-button Push-in CAGE CLAMP
Product description
1-conductor THT female connector angled push-button Push-in CAGE CLAMP® 2.5 mm² Pin spacing 5 mm 9-pole 1.4 mm Ø solder pin Gripping plate 2,5
Product specifications
Type of connection
Flexible PCB-connector
Connector model
Free connector
Contact type
Pin
Number of poles
9
Number of plug-in contact rows
1
Modular spacing contacts
5 mm
Modular spacing connections
5 mm
Angle PCB/contact
0°/180° (horizontal)
Rated current In
16 A
Rated voltage
320 V
Rated surge voltage
4 kV
Overvoltage category
III
Pollution degree
2
Material of contact surface
Tin
Type of electric connection
Soldering connection
Diameter connection pin
1.4 mm
Length pin
3.6 mm
Suitable for PCB thickness
2 mm
Material insulation body
Thermoplastic
Housing colour
Grey
Operating temperature
-60 - 100 °C
Type of PCB fastening
Connecting contact
Type of fastening
Solder
Type of banding
None
