Printed circuit board terminal WAGO
Add to selection
General information
Ordercode YESSS
6045-2081
Product code
218-104/000-604/997-405
EAN code
4055143410199
Product group
Printed circuit board terminal
Brand
WAGO

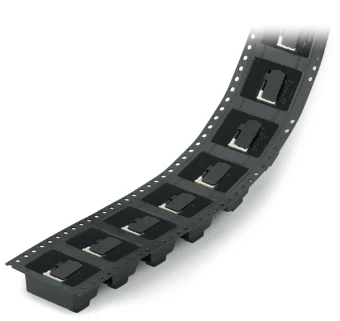

THR PCB terminal block Locking slides 0.5 mm² black
THR PCB terminal block Locking slides 0.5 mm² black
Product description
THR PCB terminal block Locking slides 0.5 mm² Pin spacing 2.5 mm 4-pole CAGE CLAMP® in tape-and-reel packaging 0,50 mm² black
Product specifications
Height
8.1 mm
Number of electrical connections
4
Number of levels
1
Modular spacing connections
2.5 mm
Angle PCB/conductor connection
Other
Rated current In
6 A
Rated voltage
160 V
Rated surge voltage
2.5 kV
Over voltage category
III
Pollution degree
2
Connection type conductor
Spring clamp connection
Connectable conductor cross section solid-core
0.08 - 0.5 mm²
Connectable conductor cross section fine-strand with cable end sleeve
0.25 - 0.25 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.08 - 0.5 mm²
Connectable conductor cross section multi-wired
0.08 - 0.5 mm²
Connection type PCB
THR connection
Material connection surface
Tin
Length pin
2.8 mm
Material insulation body
Thermoplastic
Colour housing
Black
Operating temperature
-60 - 105 °C
Type of PCB fastening
Connecting contact
Type of fastening
Solder
Type of banding
None
