Printed circuit board connector WAGO
Add to selection
General information
Ordercode YESSS
6045-0556
Product code
231-474/001-000
EAN code
4044918930680
Product group
Printed circuit board connector
Brand
WAGO

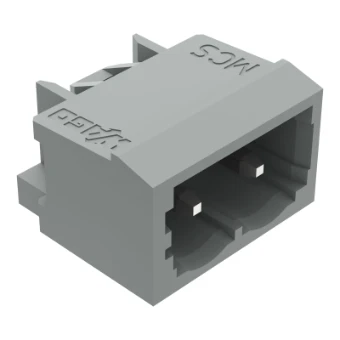

THT male header 1.2 x 1.2 mm solder pin angled
THT male header 1.2 x 1.2 mm solder pin angled gray
Product description
THT male header 1.2 x 1.2 mm solder pin angled Pin spacing 5 mm 14-pole gray
Product specifications
Type of connection
Flexible PCB-connector
Connector model
Free connector
Contact type
Pin
Number of poles
14
Number of plug-in contact rows
1
Modular spacing contacts
5 mm
Modular spacing connections
5 mm
Angle PCB/contact
0°/180° (horizontal)
Rated current In
16 A
Rated voltage
320 V
Rated surge voltage
4 kV
Over voltage category
III
Pollution degree
2
Material of contact surface
Tin
Type of electric connection
Soldering connection
Length pin
3.8 mm
Suitable for PCB thickness
1.5 mm
Material insulation body
Thermoplastic
Colour housing
Grey
Operating temperature
-60 - 100 °C
Type of PCB fastening
Connecting contact
Type of fastening
Solder
Type of banding
None
