General information
Ordercode YESSS
6023-2275
Product code
2906772
EAN code
4055626135311
Product group
Surge protection device for data networks/MCR-technology
Brand
Phoenix Contact
Surge protection device
Surge protection device
Product description

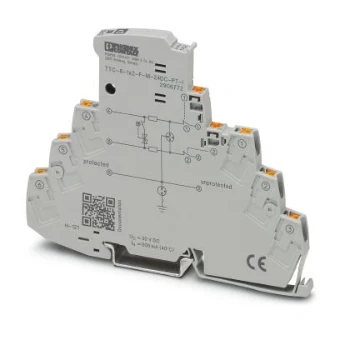

Surge protection with integrated status indicator and knife disconnection for a 2-wire floating signal circuit, e.g., 0(4)...20 mA current loop. Indirect grounding via gas discharge tube, HART-compatible.
Product specifications
Max. continuous voltage AC
21 V
Nominal discharge surge current (8/20)
5 kA
Nominal load current
0.6 A
Nominal voltage DC
24 - 24 V
Mounting method
Other
Connection 1
Clamp
Max. continuous voltage DC
30 V
Voltage protection level core/core
50 V
Voltage protection level core/earth
1300 V
Voltage protection level core/signal ground
750 V
Explosion-tested version
No
Signalling at the device
Optic
With remote signalling contact
No
