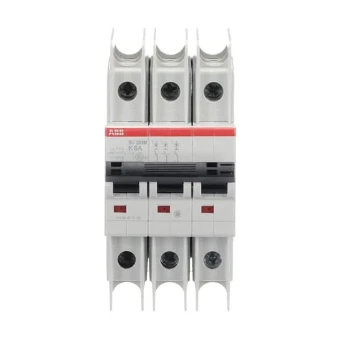

Miniature circuit breaker (MCB) ABB
Add to selection
General information
Ordercode YESSS
6012-8661
Product code
2CDS273337R0377
EAN code
4016779930321
Product group
Miniature circuit breaker (MCB)
Brand
ABB
Product specifications
Release characteristic
K
Rated current
6 A
Number of poles (total)
3
Number of protected poles
3
Width in number of modular spacings
3
Rated voltage
400 V
Rated insulation voltage Ui
440 V
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
11.2 kA
Built-in depth
69 mm
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15 kA
Additional equipment possible
Yes
Frequency
50 - 60 Hz
Voltage type
AC/DC
Current limiting class
3
Concurrently switching neutral conductor
No
Over voltage category
3
Pollution degree
3
Degree of protection (IP)
IP20
Ambient temperature during operating
-25 - 55 °C
Connectable conductor cross section multi-wired
0.75 - 25 mm²
Connectable conductor cross section solid-core
0.75 - 35 mm²
Flush-mounted installation
No
Explosion-proof
No
Power loss
6 W
