Kabelverschraubung, M20, tiefschwarz, Schutzart IP68
- 6010-0365
- |
- 22702101
0
piece
in stock
Don’t have an account? Create one
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

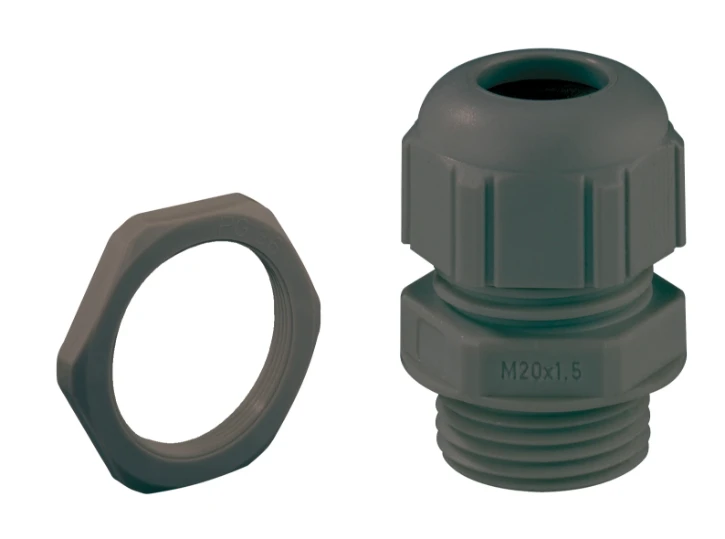

Kabelverschraubung, M20, tiefschwarz, Schutzart IP68
Kabelverschraubung, M20, tiefschwarz, Schutzart IP68
Ordercode YESSS
6010-0365
Product code
22702101
EAN code
4013902932566
Product group
Cable gland
Brand
Spelsberg
Serie
Zubehör
Type
KVR M20-GDB/MGM/sw
Product description
Kabelverschraubung, IP68, mit Zugentlastung, Polyamid, M_ x 1,5mm, mit Gegenmutter, schwarz, Dichtbereich 7-14mm, Gewindelänge 9mm
Abmessungen: 30 x 30 x 37mm
Product specifications
Material quality
Polyamide (PA)
Thread type
Metric
Nominal thread size metric/PG
20
Suitable for cable diameter
7 - 14 mm
With strain relief
Yes
Material
Plastic
Degree of protection (IP)
IP68
Shock resistant
Yes
Halogen free
Yes
With locknut
Yes
Model
Straight
Bend radius protection/trumpet flare
No
Thread length
9 mm
Nominal thread size inch/gas pipe thread
Other
Pitch thread
1.5 mm
Wrench width
27 mm
Hexagon angular dimension
26.5 mm
RAL-number
9005
Surface protection
Untreated
Glass-fibre reinforced
Yes
Colour
Black
Snapping in opening
No
Multi seal area
No
Flat cable coupling
No
Type of sealing
Sealing ring
Separable screw gland
No
Working temperature
-25 - 100 °C
Explosion-tested version
No
For Ex-zone gas
None
For Ex-zone dust
None
For armoured cable
No
EMC-version
No
Screened
No
Pressure-compensating
No
