General information
Abzweigkasten, Schutzart IP54/IP65, max. Leiterquerschnitt 10², Schlagfestigkeit IK07, Schutzklasse II,
Abzweigkasten, Schutzart IP54/IP65, max. Leiterquerschnitt 10², Schlagfestigkeit IK07, Schutzklasse II, Ui 690V AC, VDE, halogenfrei
Ordercode YESSS
0020-1128
Product code
81041001
EAN code
4013902110162
Product group
Box/housing for surface mounting on the wall/ceiling
Brand
Spelsberg
Serie
Verbindungsdosen
Type
Abox 100-10²
Product description

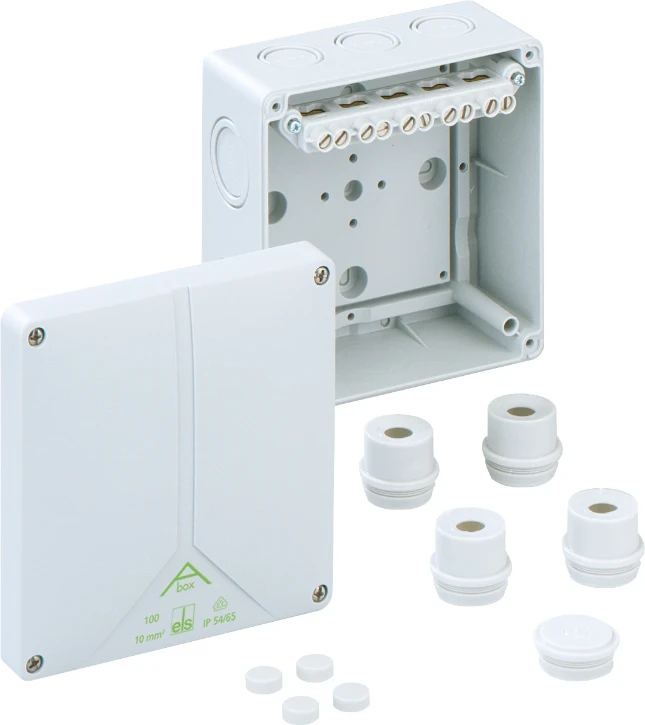

Abzweigkasten, mit Schutzart IP54/IP65, Nennquerschnitt 10mm², Ui=690V AC, zertifiziert durch VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), Ausschlagmembranen, M20/M25/M32, (2 rückseitig, 10 seitlich), innenliegende Befestigungsstellen, für Standardinstallationen im Innenbereich, grau, mit hochliegender Schraubklemme, 5-polig-10mm² (4 x 4² / 4 x 6² / 4 x 10²)
Abmessungen: 140 x 140 x 79mm
Beigefügtes Zubehör: 4 Anbaustutzen IP54 M32 Dichtbereich 13-23mm, 1 Verschlussstopfen M32
Product specifications
Mounting method
Wall-/ceiling mounting
Degree of protection (IP)
IP65
Material
Plastic
Shape
Rectangular
Max. conductor cross section
10 mm²
Mounting in the soil
No
Equipped with
Clamp
Mounting under water
No
Halogen free
Yes
Length
140 mm
Width
140 mm
Depth
79 mm
Sealable
Yes
Inlet from the rear
Yes
Connectable
No
Number of inlets
12
Type of housing feed-through
Preembossing
Surface protection
Untreated
Colour
Grey
Cover attachment
Screwed
Cover model
Other
Rated insulation voltage Ui
690 V
Castable
Yes
Transparent cover
No
Casting compound included
No
Circuit integrity
None
With screening
No
Weatherproof
No
Explosion-tested version
No
For Ex-zone gas
None
For Ex-zone dust
None
Working temperature
-25 - 40 °C
Model
Junction box
