Abzweigkasten, Schutzart IP65, max. Leiterquerschnitt 2,5², Schlagfestigkeit IK07, Schutzklasse II,
- 6010-1228
- |
- 80390701
0
piece
in stock
Don’t have an account? Create one
-
Over 6.000 products in stock
-
Order before 17:00 and receive your order the next working day!
- Need help? Call --- --- or contact us via email at [email protected]
General information

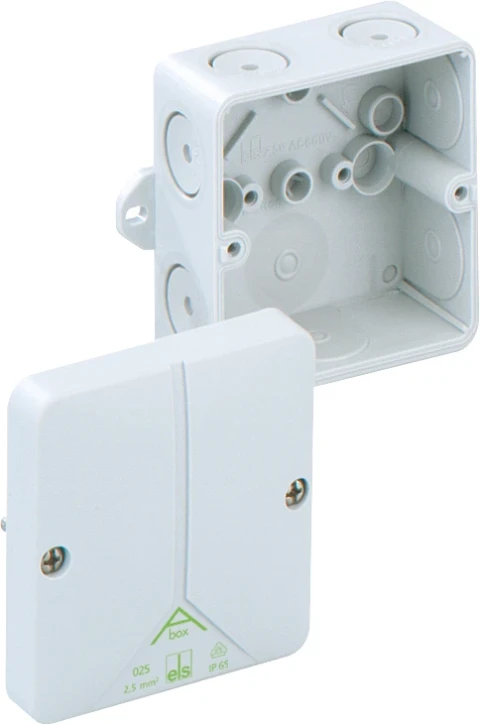

Abzweigkasten, Schutzart IP65, max. Leiterquerschnitt 2,5², Schlagfestigkeit IK07, Schutzklasse II,
Abzweigkasten, Schutzart IP65, max. Leiterquerschnitt 2,5², Schlagfestigkeit IK07, Schutzklasse II, Ui 690V AC, VDE, halogenfrei
Ordercode YESSS
6010-1228
Product code
80390701
EAN code
4013902110032
Product group
Box/housing for surface mounting on the wall/ceiling
Brand
Spelsberg
Serie
Verbindungsdosen
Type
Abox 025 AB-L
Product description
Abzweigkasten, mit Schutzart IP65, Nennquerschnitt 2,5mm², Ui=690V AC, zertifiziert durch VDE (DIN EN 60670-1/-22 (VDE 0606-1/-22)), selbstdichtende, weiche Einführungsmembranen, M20, Dichtbereich 2-16mm, (1 rückseitig, 7 seitlich), außenliegende Befestigungsstellen, für Standardinstallationen im Innenbereich, grau, ohne Klemmen
Abmessungen: 80 x 80 x 52mm
Product specifications
Mounting method
Wall-/ceiling mounting
Degree of protection (IP)
IP65
Material
Plastic
Shape
Rectangular
Max. conductor cross section
2.5 mm²
Mounting in the soil
No
Equipped with
Clamp
Mounting under water
No
Halogen free
Yes
Length
80 mm
Width
80 mm
Depth
52 mm
Sealable
Yes
Inlet from the rear
Yes
Connectable
No
Number of inlets
8
Type of housing feed-through
Seal membrane
Surface protection
Untreated
Colour
Grey
Cover attachment
Screwed
Cover model
Other
Rated insulation voltage Ui
690 V
Castable
Yes
Transparent cover
No
Casting compound included
No
Circuit integrity
None
With screening
No
Weatherproof
No
Explosion-tested version
No
For Ex-zone gas
None
For Ex-zone dust
None
Working temperature
-25 - 40 °C
Model
Junction box
