Device connection for plug-in building installation WAGO
Add to selection
General information
Ordercode YESSS
6043-9174
Product code
770-703/009-000
EAN code
4055143722414
Product group
Device connection for plug-in building installation
Brand
WAGO

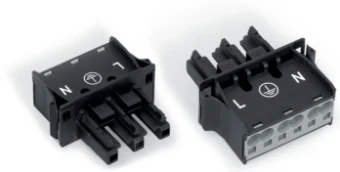

Snap-in socket with protruding mating face 3-pole black
Snap-in socket with protruding mating face 3-pole black
Product description
Snap-in socket with protruding mating face 3-pole Cod. A 4,00 mm² black
Product specifications
Rated voltage
250 V
Rated current
25 A
Number of poles
3
Degree of protection (IP)
IP20
Connection type
Spring clamp connection
Model
Bus
Built-in version
Snap-in/screw-in device
Angle of plug
Straight
Angle of inclination
0 - 0 °
Connection size thread
No thread connection
Connection cross section (fine-strand)
0.5 - 4 mm²
Connection cross section (solid-core)
0.5 - 4 mm²
Number of connections per pole
2
Pole codification
L, N, PE
Mechanical coding
Yes
Colour coding/contact insert
Black
Colour of the separate adapter piece
Without adapter piece
Colour housing
Black
Locking mechanism
Separate
Material housing
Polyamide (PA)
Max. continuous temperature resistance contact part
85 °C
Halogen free
Yes
Max. continuous temperature resistance strain relief
105 °C
Fire load
0.05 kWh
Contact material
CuSn
Surface treatment contacts
Tinned
Pollution degree
3
Rated surge voltage
4 kV
Length
37.5 mm
Height
17.5 mm
Width
35.5 mm
Continuity resistor
1 mOhm
