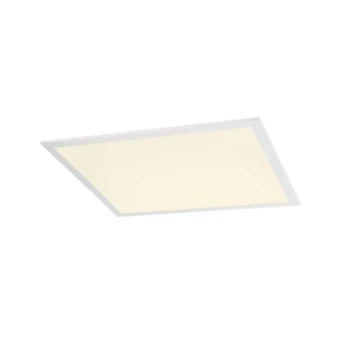

Ceiling-/wall luminaire SLV LED PANEL
Add to selection
General information
Ordercode YESSS
0562-0811
Product code
1003083
EAN code
4024163232722
Product group
Ceiling-/wall luminaire
Brand
SLV
Serie
LED PANEL
Type
LED PANEL 600 DL weiß 3000K UGR<19
LED PANEL 600x600, Indoor LED Deckeneinbauleuchte weiß 3000K UGR<19
LED PANEL 600x600, Indoor LED Deckeneinbauleuchte weiß 3000K UGR<19
Product description
Mit dem in mehreren Lichtfarben erhältlichen LED PANEL 600 für Rasterdecken, bieten wir eine moderne und raumsparende Lösung für eine effiziente Art der Grundbeleuchtung. Mit diesem Produkt erreichen Sie ein angenehmes, homogenes und blendfreies Beleuchtungsempfinden. Hier wird ein Blendwinkel unter 19° erreicht.
Product specifications
Suitable for suspended mounting
No
Suitable for ceiling mounting
Yes
Suitable for built-in mounting
Yes
Suitable for surface mounting
No
Lamp type
LED not exchangeable
With light source
Yes
Lamp holder
Other
Suitable for number of light sources
1
Type of control gear
LED operating device current-controlled
With control gear
Yes
Suitable for emergency lighting
No
Nominal current
1050 - 1050 mA
Colour temperature
3000 - 3000 K
Housing material
Aluminium
Dimming 0-10 V
No
Dimming 1-10 V
No
Housing colour
White
Dimming DALI
No
Suitable for light line configuration
No
Dimming DMX
No
Material cover
Other
Dimming DSI
No
Suitable for workplace according to EN 12464-1
Yes
Dimming potentiometer (integrated)
No
Dimming manufacturer's proprietary system
No
Light distribution
Symmetric
Dimming mains voltage modulation
No
Beam angle
Open beam/diffuse
Dimming phase cut-off (trailing edge)
No
Light outlet
Direct
Dimming phase cut-on (leading edge)
No
Length
595 mm
Dimming programmable
No
Width
595 mm
Dimming RF
No
Height/depth
9 mm
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Built-in height/depth
50 mm
With movement sensor
No
Light distributor
Diffuser lens/optic/panel
With light sensor
No
Protection class according to IEC 61140
III
Max. system power
35 W
With air slots
No
Voltage type
DC
Rated lifetime L70/B50 at 25 °C
50000 h
Colour of light
White
Colour rendering index CRI
90-100
Suitable for lamp power
35 - 35 W
Type of wiring
Ending
Surface protection housing
Lacquered
Exchangeable control gear
Yes
Dimming DALI-2
No
Constant light output (CLO)
No
Unified Glare Ratio (UGR)
19
Colour of light adjustable
No
Luminous flux adjustable
No
Beam angle adjustable
No
Operation by Bluetooth
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Suitable for wall mounting
No
Energy efficiency class of the light source according to EU regulation 2019/2015
D
Compatible with Casambi
No
