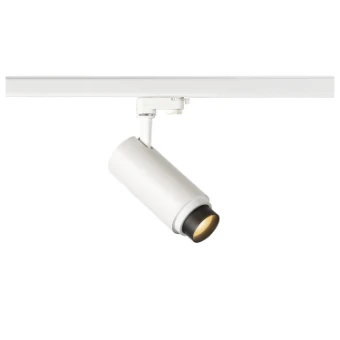

Downlight/spot/floodlight SLV NUMINOS
Add to selection
General information
Ordercode YESSS
6040-4960
Product code
1006109
EAN code
4024163262040
Product group
Downlight/spot/floodlight
Brand
SLV
Serie
NUMINOS
Type
3~ NUMINOS ZOOM M PHASE w/s 2700K 15-60°
NUMINOS ZOOM M, 3 Phasen Spot weiß 20W 2700K 15-60°
NUMINOS ZOOM M, 3 Phasen Spot weiß 20W 2700K 15-60°
Product description
Das NUMINOS Leuchtensystem von SLV vereint Technik, Design und Funktionalität wie kein anderes. Mit vielfältigen Down- und Spotlights erleben Sie Tausend lichtgestalterische Möglichkeiten. Wie mit dem NUMINOS® ZOOM M PHASE 3 Phasen System Leuchte LED, die durch ihre hochwertige Verarbeitungs- und Lichtqualität besticht. Das Spotlight ist ideal für die gezielte Akzentbeleuchtung oder auch Ausleuchtung größerer Flächen geeignet. Die einfache Installation ist dann nur noch Formsache. Wann entscheiden Sie sich für die modulare Vielfalt von SLV?
Product specifications
Suitable for surface mounting
No
Suitable for built-in mounting
No
Suitable for suspended mounting
No
Lamp type
LED not exchangeable
Suitable for ceiling mounting
Yes
Suitable for traverse mounting
No
Suitable for pedestal/floor mounting
No
Suitable for light-track mounting
Yes
Suitable for clamp-mounting
Yes
With movement sensor
No
Adjustability
Swivelling
With light source
Yes
Housing colour
White
Suitable for low voltage cable system
No
With light sensor
No
Reflector
Other
Light distribution
Symmetric
Suitable for number of light sources
1
Lamp holder
Other
Type of control gear
LED operating device current-controlled
Suitable for lamp power
20 - 20 W
With control gear
Yes
Surface protection
Lacquered
Nominal current
500 - 500 mA
Max. system power
20 W
Surface brushed
No
Nominal voltage
220 - 240 V
Colour temperature
2700 - 2700 K
Housing material
Aluminium
Material cover
Plastic matt/satinized
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Beam angle
Variable beam angle
Dimming potentiometer (integrated)
No
Length
190 mm
Width
165 mm
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Height/depth
85 mm
Voltage type
AC
Dimming mains voltage modulation
No
Outer diameter
85 mm
Dimming phase cut-off (trailing edge)
Yes
Dimming phase cut-on (leading edge)
No
Colour of light
White
Dimming programmable
No
Colour rendering index CRI
90-100
Dimming RF
No
Dimming Sine Wave Reduction
No
Protection class according to IEC 61140
I
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming with push-button
No
Light distributor
Other
Rated lifetime L70/B50 at 25 °C
40000 h
Rated ambient temperature according to IEC 62722-2-1
-20 - 40 °C
Type of wiring
Ending
Suitable for workplace according to EN 12464-1
Yes
Suitable for wall mounting
No
Exchangeable control gear
Yes
Dimming DALI-2
No
Constant light output (CLO)
No
Colour of light adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
Positions
IFTTT support available
No
Unified Glare Ratio (UGR)
25
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Energy efficiency class of the light source according to EU regulation 2019/2015
E
Operation by Bluetooth
No
Reflector colour
Silver
