Floor luminaire SLV ESKINA
Add to selection
General information
Ordercode YESSS
6015-2314
Product code
1004749
EAN code
4024163248990
Product group
Floor luminaire
Brand
SLV
Serie
ESKINA
Type
ESKINA FRAME 45 FL single anthrazit CCT
ESKINA FRAME 45, Outdoor LED Stehleuchte single anthrazit CCT switch
ESKINA FRAME 45, Outdoor LED Stehleuchte single anthrazit CCT switch 3000/4000K
Product description
Rundum gelungenes Design elegant im rechteckigen Aluminium-Rahmen verpackt: Die beliebten Outdoor-Leuchten der ESKINA Familie bieten jetzt in der Designalternative FRAME noch mehr Anwendungsmöglichkeiten. So macht die anthrazitfarbene ESKINA FRAME in jedem Außenbereich eine stilvolle Figur. Die drehbaren Leuchtenköpfe sorgen für flexibel einstellbare Lichtaustritte. Dank ihrer hohen IP-Schutzart ist die ESKINA optimal vor Wind und Wetter geschützt. Hinzu kommt, dass sich die Lichtfarbe (3000/4000 K) über den CCT Switch flexibel vor der Installation wechseln lässt. Die einfache Installation ist dann nur noch Formsache.
Product specifications
Number of lighting heads
1
Luminaire heads flexible
Yes
Lamp type
LED not exchangeable
Direct-/indirect proportion separately controllable
No
Lamp holder
Other
With separate reading light
No
With reflector
No
Suitable for number of light sources
1
Type of control gear
LED operating device current-controlled
With control gear
Yes
Voltage type
AC
Nominal voltage
220 - 240 V
Dimming 0-10 V
No
Material
Aluminium
Dimming 1-10 V
No
Housing colour
Anthracite
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Suitable for workplace according to EN 12464-1
No
Dimming potentiometer (integrated)
No
Dimming LineSwitch
No
Dimming manufacturer's proprietary system
No
Light distribution
Symmetric
Dimming mains voltage modulation
No
Light outlet
Direct
Dimming phase cut-off (trailing edge)
No
Dimming phase cut-on (leading edge)
No
Adjustable
Yes
Dimming programmable
No

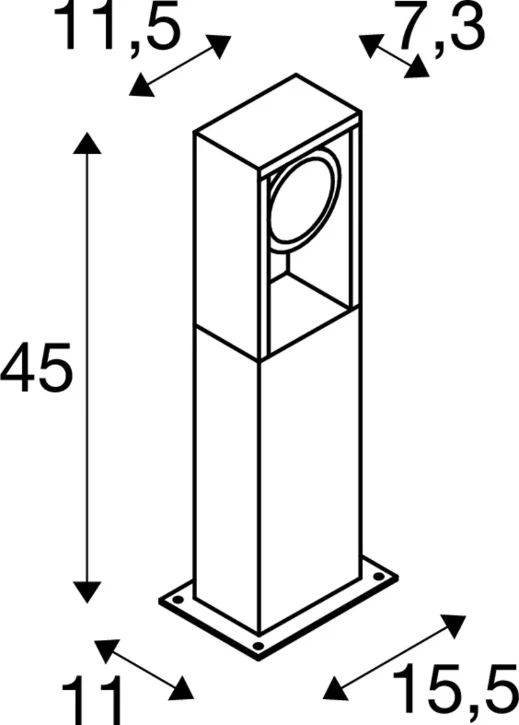

Length
115 mm
Dimming RF
No
Width
73 mm
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
With switch
No
Dimming Zigbee
No
Dimming with push-button
No
With dimmer
No
With presence detector
No
With light sensor
No
Light distributor
Other
With movement sensor
No
Protection class according to IEC 61140
I
With light source
Yes
Rated lifetime L70/B50 at 25 °C
30000 h
Suitable for lamp power
15 - 15 W
Max. system power
15 W
Colour of light
White
Colour temperature
3000 - 4000 K
Colour rendering index CRI
80-89
Height/depth
450 mm
Colour cover
Other
Exchangeable control gear
Yes
Constant light output (CLO)
No
Colour of light adjustable
Positions
Luminous flux adjustable
No
Beam angle adjustable
No
Electrical connection with connector system
No
Compatible with Apple HomeKit
No
Compatible with Amazon Alexa
No
Compatible with Google Assistant
No
IFTTT support available
No
Energy efficiency class of the light source according to EU regulation 2019/2015
F
Operation by Bluetooth
No
Compatible with Casambi
No
Luminaire efficacy
73.33 lm/W
