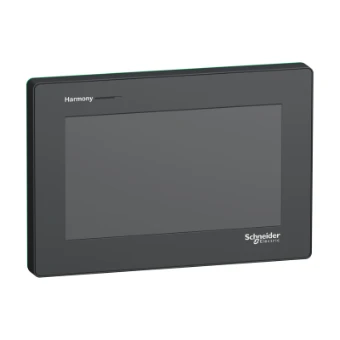

Graphic panel Schneider Electric
Add to selection
General information
Ordercode YESSS
6041-2005
Product code
HMISTM6400
EAN code
3606481856418
Product group
Graphic panel
Brand
Schneider Electric
Product specifications
With numeric keyboard
No
With alpha numeric keyboard
No
Number of HW-interfaces industrial Ethernet
2
Number of interfaces PROFINET
0
With colour display
Yes
Supply voltage DC
0 - 24 V
Voltage type of supply voltage
DC
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
1
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
2
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
1
With SW interfaces
Yes
Supporting protocol for TCP/IP
Yes
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for MODBUS
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
No
Radio standard Bluetooth
No
Radio standard Wi-Fi 802.11
No
IO link master
No
Radio standard GPRS
No
Type of display
TFT
Radio standard GSM
No
Radio standard UMTS
No
Number of colours of the display
16000000
Useful project memory/user memory
1000000 KByte
Number of grey-scales/blue-scales of display
16
Touch technology
Resistive touch
With message indication
No
With message system (incl. buffer and confirmation)
No
Process value representation (output) possible
No
Process default value (input) possible
No
With recipes
No
Number of password levels
0
With printer output
No
Number of online languages
0
Additional software components, loadable
No
Degree of protection (IP), front side
IP65
Degree of protection (NEMA), front side
13
Operating temperature
0 - 50 °C
Rail mounting possible
No
Wall mounting/direct mounting
No
Suitable for safety functions
No
Width of the front
201.2 mm
Height of the front
137.2 mm
Built-in depth
57.7 mm
Screen diagonal
7 inch
Number of pixels, horizontal
800
Number of pixels, vertical
480
