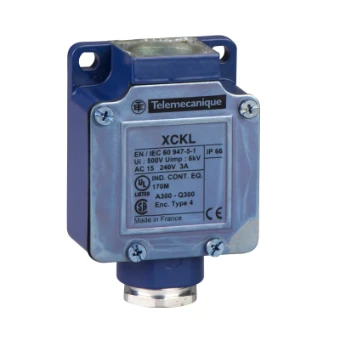

End switch Schneider Electric
Add to selection
General information
Ordercode YESSS
6037-6915
Product code
ZCKL8
EAN code
3389110599640
Product group
End switch
Brand
Schneider Electric
Product specifications
Width sensor
52 mm
Diameter sensor
0 mm
Switching function
Slow-action switch with overlapping
Output electronic
No
Rated operation current Ie at AC-15, 24 V
0 A
Height of sensor
72 mm
Length of sensor
30 mm
Rated operation current Ie at AC-15, 125 V
0 A
Rated operation current Ie at AC-15, 230 V
3 A
Rated operation current Ie at DC-13, 24 V
0 A
Rated operation current Ie at DC-13, 125 V
0 A
Switching function latching
No
Rated operation current Ie at DC-13, 230 V
0.27 A
Forced opening
No
Number of safety auxiliary contacts
0
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
2
Number of contacts as change-over contact
0
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cuboid
Material housing
Metal
Coating housing
Other
Type of control element
None
Type of electric connection
Other
Alignment of the control element
Other
With status indication
No
Suitable for safety functions
No
Explosion safety category for gas
None
Explosion safety category for dust
None
Ambient temperature during operating
-25 - 70 °C
Degree of protection (IP)
IP65
