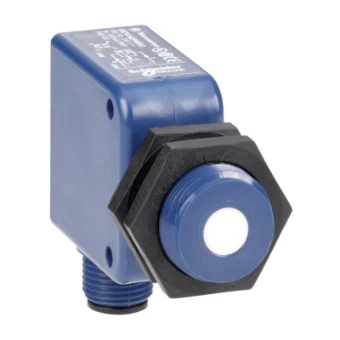

Ultrasonic proximity switch Schneider Electric
Add to selection
General information
Ordercode YESSS
6037-1249
Product code
XX7V1A1PAM12
EAN code
3389110704204
Product group
Ultrasonic proximity switch
Brand
Schneider Electric
Product specifications
Type of analogy output
Other
Type of electric connection
Connector M12
Type of switching output
PNP
Type of switch function
Normally open contact (NO)
Width sensor
18 mm
Height of sensor
43.8 mm
Length of sensor
60 mm
Diameter sensor
18 mm
Adjustable distance
51 - 508 mm
Blind zone
51 mm
Setting procedure
Teach-In
Measuring range length
51 - 508 mm
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Cuboid
Standard for interfaces
Other
No-load current
40 mA
Relative linearity deflection
0 %
Max. output current
100 mA
Ambient temperature
51 - 508 °C
Supply voltage
12 - 24 V
Relative repeat accuracy
1.27 %
Switching frequency
40 Hz
Voltage type
DC
Synchronization possible
No
Material active area of sensor
Plastic
Material housing
Plastic
Material of cable sheath
Other
AWG-number
0
Degree of protection (IP)
IP67
