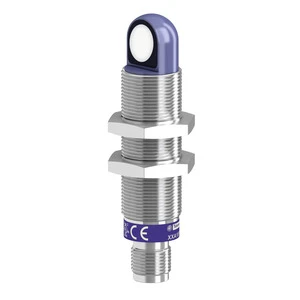

Ultrasonic proximity switch Schneider Electric
Add to selection
General information
Ordercode YESSS
6037-1099
Product code
XXA18B1PM12
EAN code
0785901059868
Product group
Ultrasonic proximity switch
Brand
Schneider Electric
Product specifications
Type of electric connection
Connector M12
Type of switching output
PNP
Type of switch function
Programmable/configurable
Length of sensor
45 mm
Diameter sensor
18 mm
Blind zone
105 mm
Setting procedure
Other
Measuring range length
1 - 1 mm
Max. output current
100 mA
Ambient temperature
-25 - 70 °C
Supply voltage
12 - 24 V
Relative repeat accuracy
0.1 %
Switching frequency
11 Hz
Voltage type
DC
Synchronization possible
Yes
Material active area of sensor
Other
Material housing
Brass
Degree of protection (IP)
IP67
