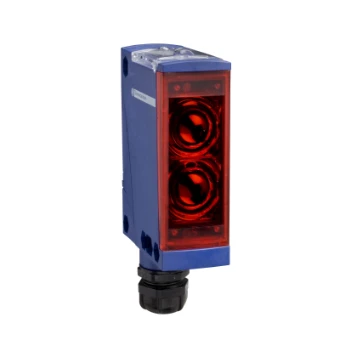

Through beam photoelectric sensor Schneider Electric
Add to selection
General information
Ordercode YESSS
6037-0007
Product code
XUX2APANT16R
EAN code
3389110170405
Product group
Through beam photoelectric sensor
Brand
Schneider Electric
Product specifications
Scope of delivery of the one-way system
Receiver
Max. opening angle
0 °
Width sensor
30 mm
Degree of protection (IP)
IP65
Pre failure notice
No
With time function
No
Rated switching distance
40000 mm
Max. switching distance
60000 mm
Max. output current
100 mA
Analogue output 0 V ... 10 V
No
Analogue output 0 mA ... 20 mA
No
Analogue output 4 mA ... 20 mA
No
Analogue output -10 V ... +10 V
No
With other analogue output
No
Setting procedure
Teach-In
With communication interface analogue
No
With communication interface AS-Interface
No
With communication interface CANOpen
No
With communication interface DeviceNet
No
With communication interface Ethernet
No
With communication interface INTERBUS
No
With communication interface PROFIBUS
No
With communication interface RS-232
No
With communication interface RS-422
No
With communication interface RS-485
No
With communication interface SSD
No
With communication interface SSI
No
Number of semiconductor outputs with signalling function
1
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
0
Type of interface for safety communication
Other
Type of electric connection
Screw connection
Type of switching output
PNP/PNP
Type of switch function
Normally open contact (NO)
Operation agent-safety class
Safety class 0
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Cuboid
Height of sensor
92 mm
Length of sensor
77 mm
Sensing mode
Dark switching
Material of optical surface
Plastic
Material housing
Plastic
Max. output current at protected output
100 mA
Min. reflector distance
30000 mm
Ambient temperature
-25 - 55 °C
Response time
2 ms
Switching frequency
250 Hz
Type of safety according to IEC 61496-1
1
Rated control supply voltage at DC
12 - 24 V
Voltage type
AC/DC
With monitoring function downstream switching devices
No
Laser protection class
None
Type of light
Infrared light
Material of cable sheath
Other
With restart blockage
No
Suitable for safety functions
No
