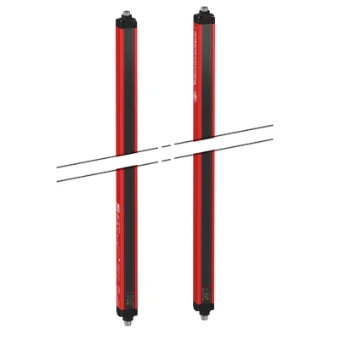

Light curtain Schneider Electric
Add to selection
General information
Ordercode YESSS
6036-9686
Product code
XUSL4E14F031NM
EAN code
3389119619943
Product group
Light curtain
Brand
Schneider Electric
Product specifications
Fade-out possible
No
Type of electric connection
Connector M12
Type of switching output of the OSSD
PNP/PNP
Type of interface for safety communication
Other
Cascadable
Yes
Resolution of the light curtain
14 mm
Number of semiconductor outputs with signalling function
0
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
2
Number of protected contact energized outputs
0
Operation agent-safety class
Safety class 3
Width sensor
29.4 mm
Height of sensor
387 mm
Length of sensor
31 mm
Detection capability for test bodies
14 mm
Explosion safety category for gas
None
Explosion safety category for dust
None
Scope of delivery of the one-way system
Transmitter and receiver
Max. output current at protected output
400 mA
Ambient temperature
-10 - 55 °C
With muting function
Yes
Override possible
No
Reduced resolution
No
Transmission range of the safety field
6 m
Switching voltage of OSSD at state "high"
24 V
Safety field height
310 mm
Type of safety according to IEC 61496-1
4
Rated control supply voltage at DC
24 - 24 V
Voltage type
AC/DC
With beam coding
No
Clock control possible
No
With monitoring function downstream switching devices
No
With restart blockage
Yes
Suitable for safety functions
Yes
Degree of protection (IP)
IP65
Wavelength of the sensor
950 nm
