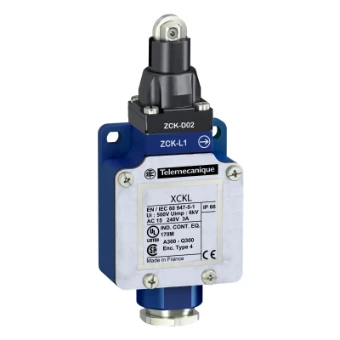

End switch Schneider Electric
Add to selection
General information
Ordercode YESSS
6036-3917
Product code
XCKL102
EAN code
3389110646481
Product group
End switch
Brand
Schneider Electric
Product specifications
Width sensor
52 mm
Switching function
Quick-break switch
Output electronic
No
Height of sensor
72 mm
Length of sensor
30 mm
Rated operation current Ie at AC-15, 230 V
3 A
Switching function latching
No
Rated operation current Ie at DC-13, 230 V
0.27 A
Forced opening
Yes
Number of safety auxiliary contacts
1
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Type of interface
None
Type of interface for safety communication
None
Construction type housing
Cuboid
Material housing
Metal
Coating housing
Other
Type of control element
Roller cam
Type of electric connection
Other
Alignment of the control element
Roller cam straight
With status indication
No
Suitable for safety functions
Yes
Explosion safety category for gas
None
Explosion safety category for dust
None
Ambient temperature during operating
-25 - 70 °C
Degree of protection (IP)
IP66/IP67
