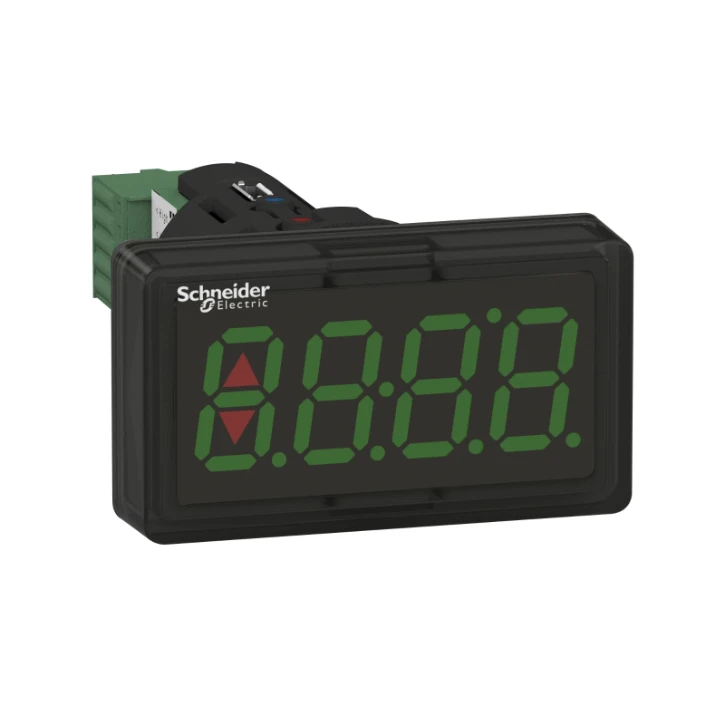

Segmentanzeige, Kunststoff, 22,5mm, Komplettgerät, LED Farbe grün

  • 6036-2050
  • |
  • XBH1AA0G4
0 piece in stock
Login to order
Don’t have an account? Create one
  • Products Over 6.000 products in stock
  • Order before 17:00 and receive your order the next working day!
  • Need help? Call --- --- or contact us via email at [email protected]

General information

Segmentanzeige, Kunststoff, 22,5mm, Komplettgerät, LED Farbe grün Segmentanzeige, Kunststoff, 22,5mm, Komplettgerät, LED Farbe grün
Ordercode YESSS
6036-2050
Product code
XBH1AA0G4
EAN code
3606489737214
Product group
Graphic panel
Brand
Schneider Electric
Serie
XB5
Type
XBH1AA0G4

Product description

Harmony XB5 Baureihe, Segmentanzeige, 7-Segmentanzeige. Die Anzeige ist 4 stellig mit LED Farbe grün. Ausführung Komplettgerät, Einbaumaß 22,5mm. In Kunststoffausführung. Umgebungstemperatur von -20 bis +60 Grad C. Schutzart bis IP65.

Product specifications

With numeric keyboard
No
With alpha numeric keyboard
No
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Colour display
Yes
Supply voltage DC
4 - 20 V
Voltage type (supply voltage)
DC
Number of HW-interfaces RS-232
0
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
1
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
With SW interfaces
Yes
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Mobile communication standard GPRS
No
Type of display
Other
Mobile communication standard 2G (GSM)
No
Mobile communication standard 3G (UMTS)
No
Number of colours of the display
1
Number of grey-scales/blue-scales of display
0
Number of function buttons, programmable
0
Number of buttons with LED
0
Number of system buttons
0
Touch technology
None
With message indication
No
With message system (incl. buffer and confirmation)
No
Process value representation (output) possible
Yes
Process default value (input) possible
No
With recipes
No
Number of password levels
0
With printer output
No
Number of online languages
0
Additional software components, loadable
No
Degree of protection (IP), front side
IP65
Degree of protection (NEMA), front side
Other
Operating temperature
-20 - 60 °C
Suitable for rail mounting
No
Wall mounting/direct mounting
No
Suitable for safety functions
No
Width of the front
51.5 mm
Height of the front
29.5 mm
Built-in depth
78.2 mm
Screen diagonal
0.86 inch
Number of pixels, horizontal
0
Number of pixels, vertical
0
