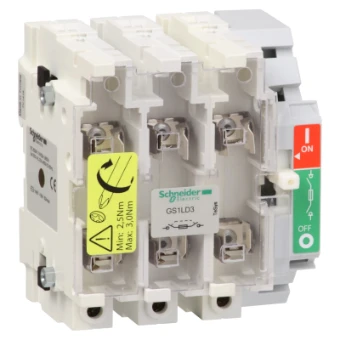

Fuse switch disconnector Schneider Electric TeSys GS
Add to selection
General information
Ordercode YESSS
6032-6536
Product code
GS1LD3
EAN code
3389110254006
Product group
Fuse switch disconnector
Brand
Schneider Electric
Serie
TeSys GS
Type
GS1LD3
Gesicherter Trennschalter-Sockel GS1 3p 3 F, DIN, 160A
Gesicherter Trennschalter-Sockel GS1 3p 3 F, DIN, 160A
Product description
Sicherungslasttrenner Der Einsatz von Sicherungen ist eine zuverlässige undeffektive Lösung zum Schutz Ihrer Niederspannungsausrüstung gegen Kurzschlüsse.
Product specifications
Number of poles
3
Rated permanent current Iu
160 A
Suitable for fuses
NH0
Rated operation power at AC-23, 400 V
90 kW
Version as main switch
Yes
Version as safety switch
No
Rated short-time withstand current lcw
100 kA
Suitable for busbar mounting
Yes
Degree of protection (IP), front side
IP20
Max. rated operation voltage Ue AC
750 V
Conditioned rated short-circuit current Iq
100 kA
Cable entry
Other
With error protection
No
Equipped with connectors
No
Type of electrical connection of main circuit
Screw connection
Type of control element
Without actuator
Position control element
Right
Version as emergency stop installation
No
Motor drive optional
No
Motor drive integrated
No
