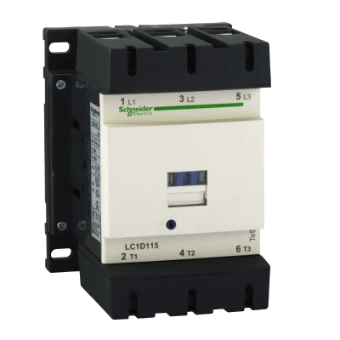

Power contactor, AC switching Schneider Electric TeSys D
Add to selection
General information
Ordercode YESSS
6033-2967
Product code
LC1D115B7
EAN code
3389110376609
Product group
Power contactor, AC switching
Brand
Schneider Electric
Serie
TeSys D
Type
LC1D115B7
Leistungsschütz LC1D 3p, +1S+1Ö, 55 kW, 115 A, 400 V
Leistungsschütz LC1D 3p, +1S+1Ö, 55 kW, 115 A, 400 V AC3, Spule 24 V AC
Product description
Leistungsschütz TeSys LC1D. 3 polig, 3 Schließer. Zusätzliche Hilfskontakte- 1 Schließer + 1 Öffner, Bemessungsbetriebsleistung bei AC-3, 400 V 55 kW, Bemessungsbetriebsstrom Ie bei AC-3, 400 V 115 A, Spule 24 V AC. Abmessung (BxHxT) 120x158x136 mm, Gewicht 2,5 kg. Kategorie AC-1, AC-4, AC-3. integrierte bidirektionale Amplitudenbegrenzerdiode. Schnelle und einfache Einrichtung. Sichere und langlebige Stromverbindung mit Everlink und Federklemmen. Geeignet für Sicherheitsanwendungen durch mechanisch gekoppelte Kontakte und Spiegelkontakte. Zertifizierungen nach DNV, GOST, UL, CSA, CCC, LROS (Lloyds register of shipping), RINA, GL, BV. Produktstandards gem.
Product specifications
Rated operation power at AC-3, 400 V
55 kW
Voltage type for actuating
AC
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Type of electrical connection of main circuit
Screw connection
Suitable for distribution board
No
Rated control supply voltage AC 50 Hz
24 - 24 V
Rated control supply voltage AC 60 Hz
24 - 24 V
Rated operation current Ie at AC-1, 400 V
200 A
Rated operation current Ie at AC-3, 400 V
115 A
Rated operation current Ie at AC-4, 400 V
38 A
Rated operation power at AC-4, 400 V
18.5 kW
