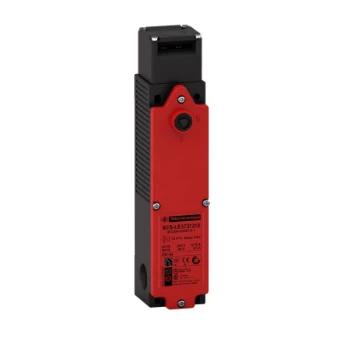

Position switch with guard locking Schneider Electric Preventa XCS
Add to selection
General information
Ordercode YESSS
6036-4846
Product code
XCSLE2525312
EAN code
3606489413637
Product group
Position switch with guard locking
Brand
Schneider Electric
Serie
Preventa XCS
Type
XCSLE2525312
XCSLE-Si-Pos.sch., Kunstst.gek., 2Ö+2S - gest. schalt., 3 Leit.einf.
XCSLE-Si-Pos.sch., Kunstst.gek., 2Ö+2S - gest. schalt., 3 Leit.einf.
Product description
Sicherheits-Positionsschalter Kunststoff mit getrenntem Betätiger und Verriegelung. XCSLE-Sicherheits-Positionsschalter Kunststoffgehäuse, Gestuft schaltend, 3 Leitungseinführung. Hilfsschalter 2 Ö + 2 S. Umsetzbarer Antriebskopf, Schutzart IP 67. 3 Leitungseinführungen M20 x 1,5. Hilfsschalter zwangsöffnend, ohne Sprungfunktion, Abmessungen 43,6 x 50,6 x 205 mm. Anschluss Federzugklemmen, 2 LED-Anzeigen. Verriegelung durch spannungslosen Zustand. Entriegelung durch Einschalten des Elektromagneten. Spulenspannung 24 V AC/DC.
Product specifications
With status indication
Yes
Type of electric connection
Cable entry metrical
Type of interface for safety communication
None
Type of interface
None
Type of guard locking
Quiescent current principle
Suitable for safety functions
Yes
With auxiliary release
No
Guard locking force
20 N
With escape release
No
Rated control supply voltage magnet drive AC 50 Hz
24 - 24 V
Rated control supply voltage magnet drive AC 60 Hz
24 - 24 V
Rated control supply voltage magnet drive DC
24 - 24 V
Width sensor
44 mm
Height of sensor
205 mm
Length of sensor
51 mm
Number of safety auxiliary contacts
0
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Type of switching contact
Slow-action switch
Rated operation current Ie at AC-15, 230 V
0.75 A
Rated operation current Ie at DC-13, 24 V
0.55 A
Coating housing
Other
Construction type housing
Other
Housing material
Plastic
Explosion safety category for gas
None
Explosion safety category for dust
Other
Ambient temperature during operating
-25 - 60 °C
Degree of protection (IP)
IP67K
