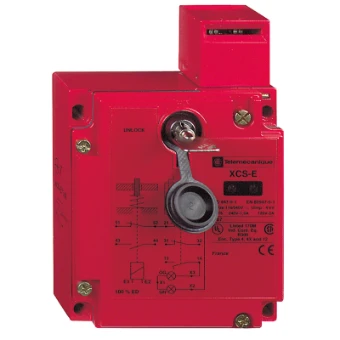

Position switch with guard locking Schneider Electric Preventa XCS
Add to selection
General information
Ordercode YESSS
6036-4762
Product code
XCSE5311
EAN code
3389110719536
Product group
Position switch with guard locking
Brand
Schneider Electric
Serie
Preventa XCS
Type
XCSE5311
XCSE-Sicherh.-Pos.sch. Met.gek., 1Ö+2S, , gest. schlt. 2 Leit.einf.
XCSE-Sicherh.-Pos.sch. Met.gek., 1Ö+2S, , gest. schlt. 2 Leit.einf.
Product description
Sicherheits-Positionsschalter Metall mit getrenntem Betätiger und Verriegelung OsiSense XCSE. Magnetkontakte 1S+1Ö, gestuft schaltend 2 Leitungseinführungen, Hilfsschalter 1S+2Ö zwangsöffnend, ohne Sprungfunktion, 2 x PG13.5 Kabeleinführung. Umsetzbarer Antriebskopf. Mit funktionsüberwachter Zuhaltung und elektromagnetischer Verriegelung.
Product specifications
With status indication
Yes
Type of electric connection
Cable entry PG
Type of interface for safety communication
None
Type of interface
None
Type of guard locking
Quiescent current principle
Suitable for safety functions
Yes
With auxiliary release
No
Guard locking force
2000 N
With escape release
No
Rated control supply voltage magnet drive AC 50 Hz
24 - 24 V
Rated control supply voltage magnet drive AC 60 Hz
24 - 24 V
Rated control supply voltage magnet drive DC
24 - 24 V
Width sensor
98 mm
Height of sensor
146 mm
Length of sensor
44 mm
Number of safety auxiliary contacts
0
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
2
Number of contacts as change-over contact
0
Type of switching contact
Slow-action switch
Rated operation current Ie at AC-15, 125 V
3 A
Rated operation current Ie at AC-15, 230 V
1.5 A
Rated operation current Ie at DC-13, 125 V
0.55 A
Rated operation current Ie at DC-13, 230 V
0.27 A
Coating housing
Other
Construction type housing
Cuboid
Housing material
Metal
Explosion safety category for gas
None
Explosion safety category for dust
None
Ambient temperature during operating
-25 - 40 °C
Degree of protection (IP)
IP67K
