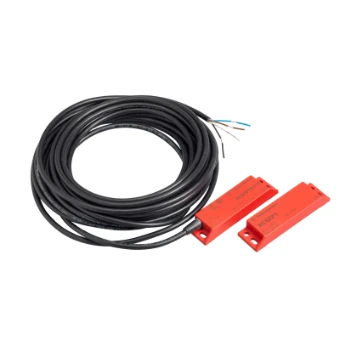

Magnetic proximity switch Schneider Electric
Add to selection
General information
Ordercode YESSS
6036-4712
Product code
XCSDMP7012
EAN code
3389110971996
Product group
Magnetic proximity switch
Brand
Schneider Electric
Product specifications
Type of switching output
Relay contact
Type of electric connection
Cable radial
Type of interface for safety communication
Other
Type of actuation
Magnet
Width sensor
25 mm
Height of sensor
88 mm
Number of semiconductor outputs with signalling function
0
Number of contact energized outputs with signalling function
0
Number of protected semiconductor outputs
0
Number of protected contact energized outputs
3
Length of sensor
13 mm
Explosion safety category for gas
None
Explosion safety category for dust
None
Construction type housing
Cuboid
Material housing
Plastic
Coating housing
Uncoated
Protected switch distance OFF
20 mm
Protected switch distance ON
8 mm
SIL according to IEC 61508
3
Performance level according to EN ISO 13849-1
Level e
Max. output current at protected output
100 mA
Ambient temperature
-25 - 85 °C
Mechanical mounting condition for sensor
Other
Min. output current
100 mA
Rated supply voltage at DC
24 - 24 V
Voltage type
AC/DC
Cross-/short circuit identification possible
No
Switching distance
20 mm
With monitoring function downstream switching devices
No
Suitable for safety functions
Yes
With status indication
No
Degree of protection (IP)
IP66
