General information

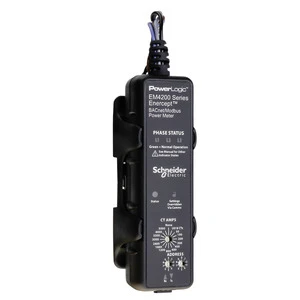

Enercept,Energiezähler Klasse 0.2S,Modbus/BACnet-Komm. RS-485,IEC Drahtkodierung
Enercept,Energiezähler Klasse 0.2S,Modbus/BACnet-Komm. RS-485,IEC Drahtkodierung
Ordercode YESSS
6034-2640
Product code
METSEEM4235
Product group
Electricity meter
Brand
Schneider Electric
Serie
PowerLogic EM4200 Enercept
Type
METSEEM4235
Product description
PowerLogic EM4200. Universal-Messgeräte Serie EM4200 für Wandlermessung über Low Voltage Current Transformer (LVCT) bis 2400 A und Rogowski-Flexwandler bis 5000 A für Messungen in Niederspannungsanwendungen bis 480 V AC. Einfache Inbetriebnahme ohne Software Konfiguration der Wandlerfaktoren und Kommunikation über Drehkodierschalter. EM4235 Enercept, Energiezähler Klasse 0.2S, Modbus/BACnet-Komm. RS-485, IEC Drahtkodierung.
Product specifications
Model
Measurement transformer
Mounting method
DRA (DIN-rail adaptor)
Energy type
Effective power and reactive power
Tariff type
One-tariff
Type of meter
Electronic
Max. current (Imax)
5000 A
Nominal voltage (Un) N-L
90 - 277 V
Nominal voltage (Un) L-L
90 - 480 V
Frequency
50 - 60 Hz
Accuracy class
B
Pole type
Three conductor/four conductor
Suitable for
Purchase
Measurement type load profile
No
Escapement mechanism
No
Calibrated
No
Approval
Domestic
Pulse output
None
Type of indication
None
Width in number of modular spacings
3
Width
46.63 mm
Depth
35.81 mm
Height
152.36 mm
Type of interface
RS-485
EEC40 signature
No
With lock code
No
Number of positions total (counter)
0
Degree of protection (IP)
IP20
Degree of protection (NEMA)
1
