General information

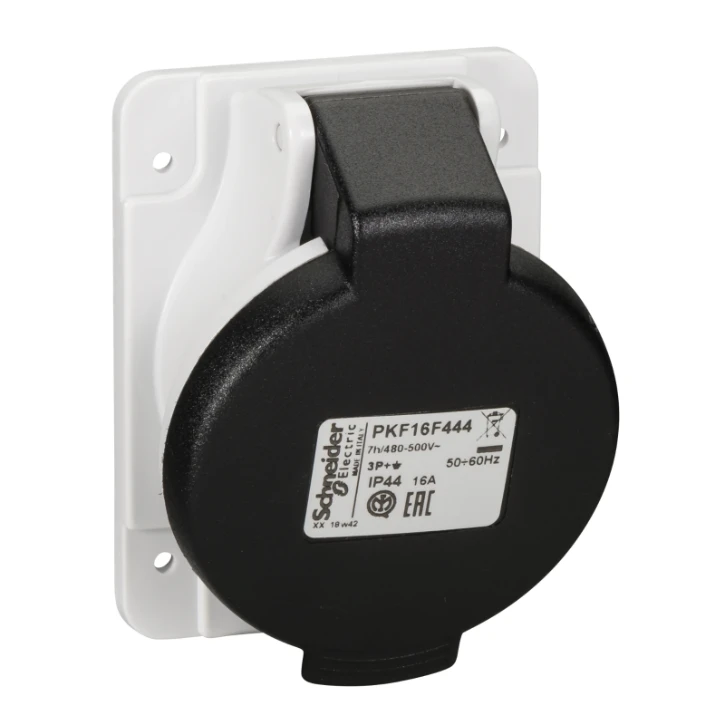

CEE Anbausteckdose, Schraubklemmen, 16A, 3p+E, 480-500 V AC
CEE Anbausteckdose, Schraubklemmen, 16A, 3p+E, 480-500 V AC
Ordercode YESSS
6035-1193
Product code
PKF16F444
EAN code
3303432033118
Product group
Panel-mounted CEE socket outlet (IEC 60309)
Brand
Schneider Electric
Serie
PK Industriestecker und -dosen
Type
PKF16F444
Product description
CEE Anbausteckdose, Schraubklemmen, 16A, 3p+E, 480-500 V AC
Product specifications
Number of poles
4
IEC-amperage
16 A
Identification colour
Black
Rated voltage
480 - 500 V
Clock hour position
7 h
Voltage according to EN 60309-2
500 V (50+60 Hz) black
Rated frequency
50 - 60 Hz
Degree of protection (IP)
IP44
RAL-number
7035
Connection system
Screwed terminal
Insert direction
Angled
Cable entry
None
Material
Plastic
Military model
No
Flange size vertical
85 mm
Flange size horizontal
65 mm
Drill hole distance horizontal
52 mm
