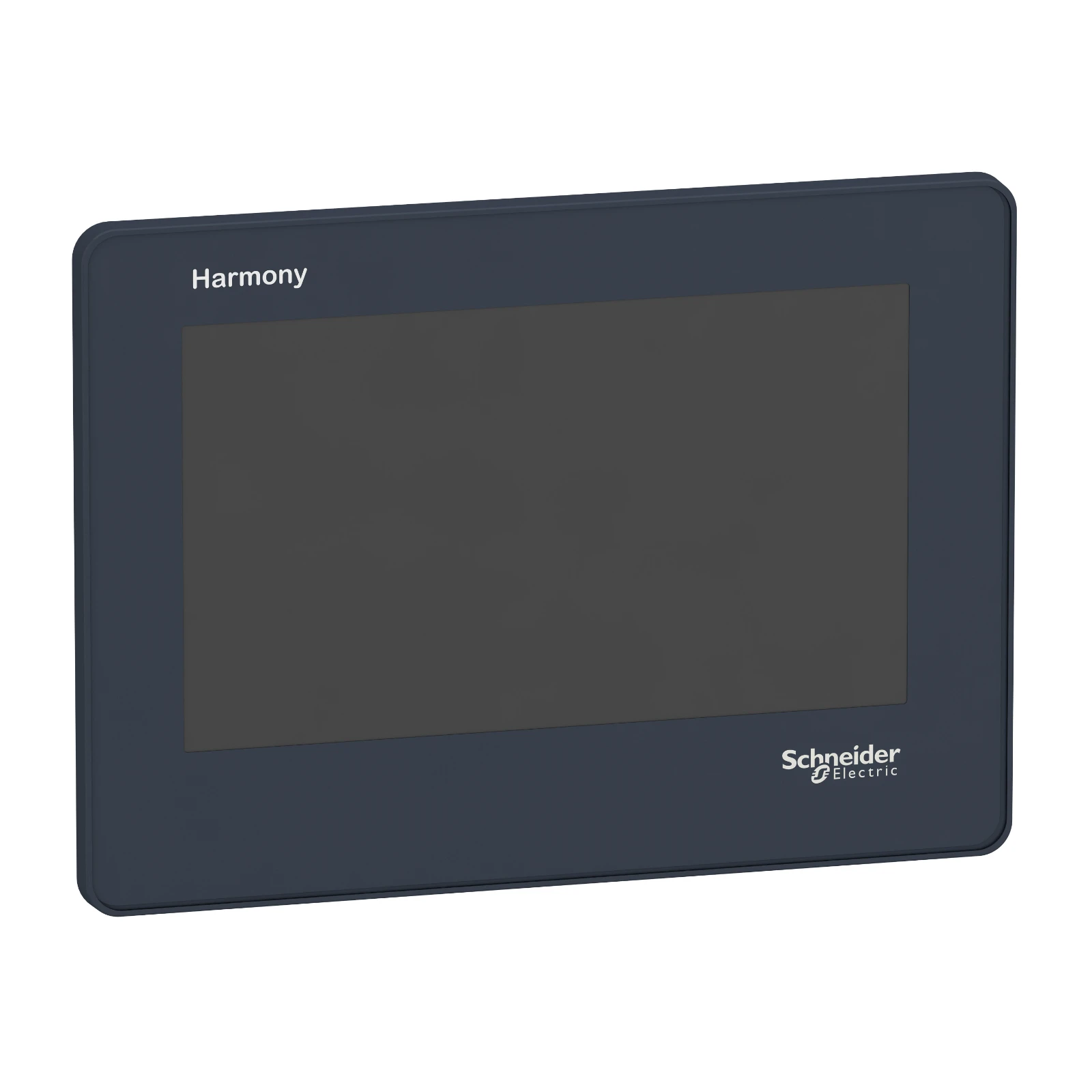

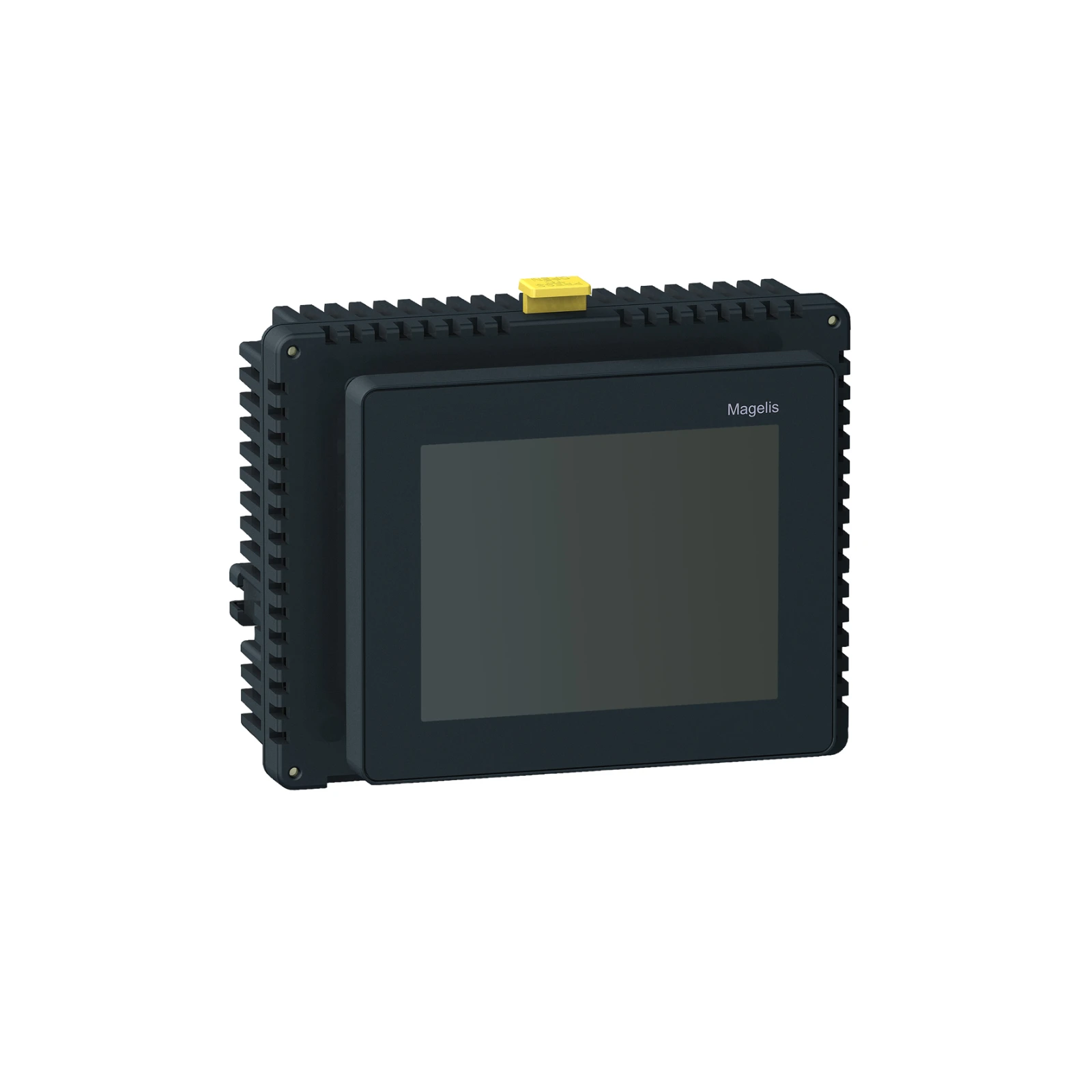

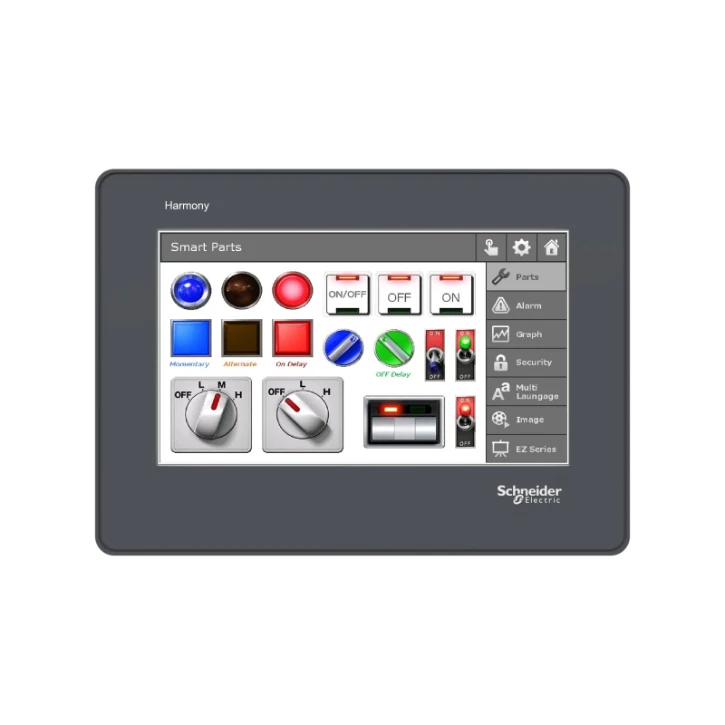

Graphic panel Schneider Electric Magelis STO, STU

Add to selection
General information
Ordercode YESSS
6032-7584
Product code
HMISTO705
EAN code
3606480920899
Product group
Graphic panel
Brand
Schneider Electric
Serie
Magelis STO, STU
Type
HMISTO705
Harmony STO7 4,3"W Kompakt-HMI, Touch-Display resistiv, 1 x RS-232C-Klemmleiste Harmony STO7 4,3"W Kompakt-HMI, Touch-Display resistiv, 1 x RS-232C-Klemmleiste
Product description

Das Kompakt-HMI STO7 ist ein Standard Touch-Panel für kleine Anzeigen an einfachen Maschinen. . Diese Produkt-Reihe wurde entwickelt, um die Anforderungen an die Bedienerschnittstelle einfacher Maschinen zu erfüllen. Hierbei stehen die Qualität der Visualisierung auf einer kleinen Anzeige und ein kompaktes Format bei ausreichender Konnektivität im Mittelpunkt. Das resistive Single-Touch Display in 4,3 Zoll wide screen mit 65k Farben und einer Auflösung von 480x272 Pixel dient der Visualisierung, Bedienung und Statusanzeige ihrer Anwendungen. Die Bedienoberfläche auf dem HMI wird mit der Software EcoStruxure Operator Terminal Expert konfiguriert. Durch die dedizierte Schnittstelle 1 x COM RS-232C-Klemmleiste, 1 x USB Typ A, 1 x USB micro-B ist eine ausreichende Konnektivität gewährleistet. Die äußeren Abmessungen des Displays betragen 124,9 mm (Breite) x 90,4 mm (Höhe) x 35,9 mm (Tiefe) bei einem Panel Cut-out von 112,5 mm x 77,5 mm und einer Tafeldicke von 1,6 bis 5 mm. Das Produkt entsprichte der Schutzklasse IP65F, Type 1, Type 4X (nur Innenbereich), Type 13 (auf der Frontseite, wenn ordnungsgemäß in einem Gehäuse installiert). Zudem entspricht es Normen, wie CE, China RoHS, REACH,KC, EN (61000-6-4/61000-6-2/ 61131-2), UL 61010-2-201, CSA C22.2 No 61010-2-201.

Product specifications
With numeric keyboard
No
With alpha numeric keyboard
No
Number of HW-interfaces industrial Ethernet
0
Number of interfaces PROFINET
0
Colour display
Yes
Supply voltage DC
24 - 24 V
Voltage type (supply voltage)
AC/DC
Number of HW-interfaces RS-232
1
Number of HW-interfaces RS-422
0
Number of HW-interfaces RS-485
0
Number of HW-interfaces serial TTY
0
Number of HW-interfaces USB
2
Number of HW-interfaces parallel
0
Number of HW-interfaces Wireless
0
Number of HW-interfaces other
0
With SW interfaces
Yes
Supporting protocol for TCP/IP
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for ASI
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
Yes
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for LON
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for SERCOS
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for EtherNet/IP
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for INTERBUS-Safety
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supporting protocol for other bus systems
Yes
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
Yes
Radio standard GPRS
No
Type of display
TFT
Radio standard GSM
No
Mobile communications standard 3G (UMTS)
No
Number of colours of the display
65536
Usable project memory/user memory
27136 KByte
Number of grey-scales/blue-scales of display
16
Number of function buttons, programmable
0
Number of buttons with LED
0
Number of system buttons
0
Touch technology
Other
With message indication
Yes
With message system (incl. buffer and confirmation)
Yes
Process value representation (output) possible
Yes
Process default value (input) possible
Yes
With recipes
Yes
Number of password levels
0
With printer output
No
Number of online languages
6
Additional software components, loadable
Yes
Degree of protection (IP), front side
IP65/IP67
Degree of protection (NEMA), front side
Other
Operating temperature
0 - 50 °C
Suitable for rail mounting
No
Wall mounting/direct mounting
Yes
Suitable for safety functions
No
Width of the front
124.9 mm
Height of the front
90.4 mm
Built-in depth
38.8 mm
Screen diagonal
4.3 inch
Number of pixels, horizontal
480
Number of pixels, vertical
272
