General information

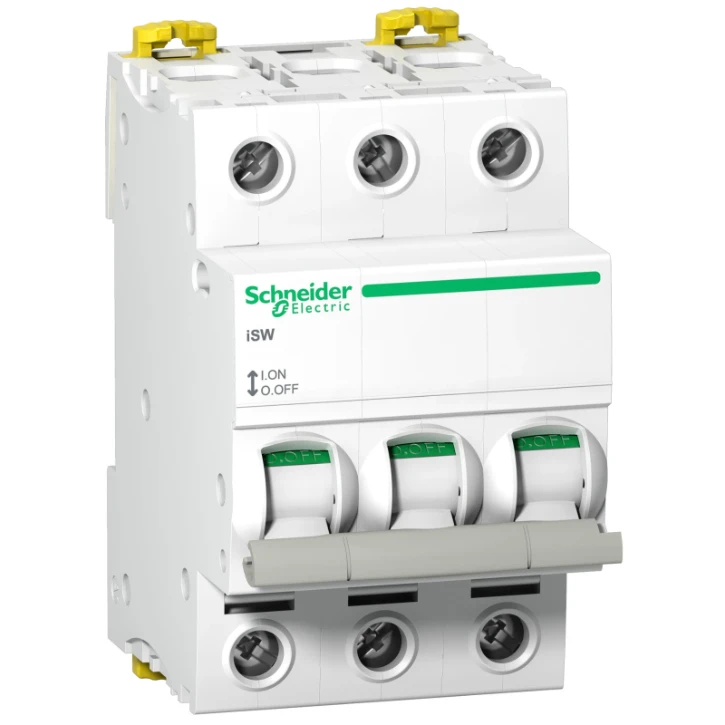

Lasttrennschalter iSW, 3P, 63A, 415V AC
Lasttrennschalter iSW, 3P, 63A, 415V AC
Ordercode YESSS
6031-5733
Product code
A9S65363
EAN code
3606480531101
Product group
Main switch for distribution board
Brand
Schneider Electric
Serie
iSW
Type
A9S65363
Product description
Lasttrennschalter Acti 9 iSW. 3-polig, Nennstrom 63A, Betriebsspannung (Ue) 415V AC, Isolationsspannung (Ui) 500V AC. Öffnen und Schließen von Stromkreisen unter Last. Eindeutige Schaltstellungsanzeige durch grüne Markierung am Schaltknebel des Gerätes. Zusätzlich anreihbare Hilfsmodule (optional): Hilfsschalter zur Statusmeldung (iOF). Werkzeuglose Montage linksseitig am Gerät. Farbton RAL 9003. Der Lasttrennschalter iSW erfüllt folgende Normen: IEC/EN 60947-3.
Product specifications
Switching function
Off switch
Number of poles
3
Rated current
63 A
Rated voltage
240 V
Min. rated voltage
415 V
Rated switching capacity
5 kA
Short-circuit breaking capacity (Icw)
1.26 kA
Voltage type
AC
With signal lamp
No
Colour calotte
Grey
Width in number of modular spacings
3
Built-in depth
75.5 mm
Degree of protection (IP)
IP20
Number of contacts as normally open contact
3
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
0
Imprint/indication
Other
Forced segregation according to DIN VDE 0113
Yes
