General information

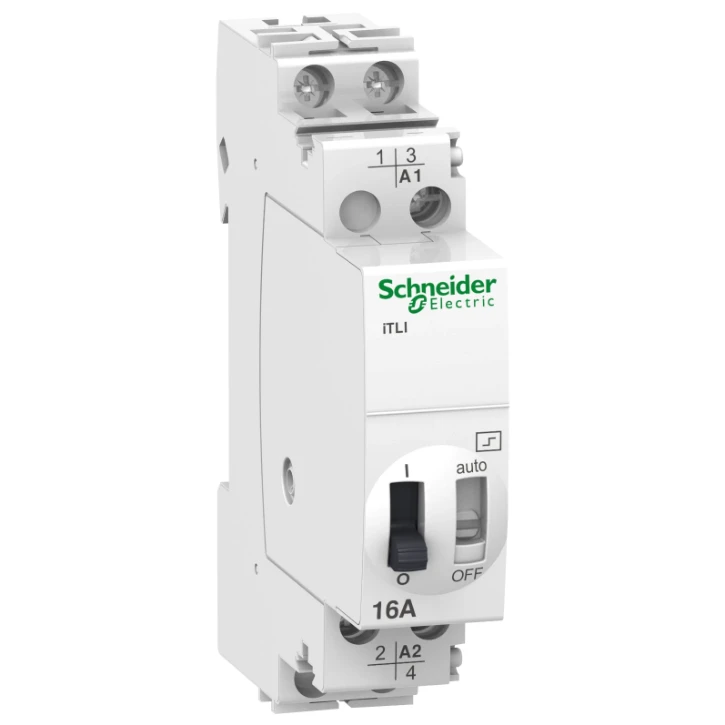

Fernschalter iTLI, 2P, 1S+1Ö, 16A, Spule 12 VDC, 24 VAC
Fernschalter iTLI, 2P, 1S+1Ö, 16A, Spule 12 VDC, 24 VAC 50/60Hz
Ordercode YESSS
6031-4269
Product code
A9C30115
EAN code
3606480092008
Product group
Latching relay
Brand
Schneider Electric
Serie
Acti 9 iTL
Type
A9C30115
Product description
Fernschalter Acti 9 iTLI. 2-polig, 1 Schließer + 1 Öffner, Nennstrom 16A, Steuerspannung (Uc) 24V AC / 12V DC. Fernschalter zum Schalten von Beleuchtungsstromkreisen mit einem oder mehreren Tastern. Breite in TE 1.
Product specifications
Rated switch current
16 A
Mounting method
DIN rail
Function
Mechanical switch
Width in number of modular spacings
1
Built-in depth
43.5 mm
Control voltage 1
24 - 24 V
Type of control voltage 1
AC
Frequency control voltage 1
50 - 60 Hz
Control voltage 2
12 - 12 V
Type of control voltage 2
DC
Supply voltage
24 - 250 V
Voltage type (supply voltage)
AC
Max. load fluorescent lamp
1300 VA
Max. load fluorescent lamp (Duo circuit)
2000 VA
Max. load fluorescent lamp (parallel compensated)
900 VA
Max. incandescent lamp load
1600 W
Max. switching current (cos phi = 0.6)
16 A
Number of contacts as normally open contact
1
Number of contacts as normally closed contact
1
Number of contacts as change-over contact
0
Suitable for manual operation
Yes
