Screw connection for protective plastic hose Phoenix Contact
Add to selection
General information
Ordercode YESSS
6023-8447
Product code
3240878
EAN code
4046356709859
Product group
Screw connection for protective plastic hose
Brand
Phoenix Contact
Screw connection
Screw connection
Product description

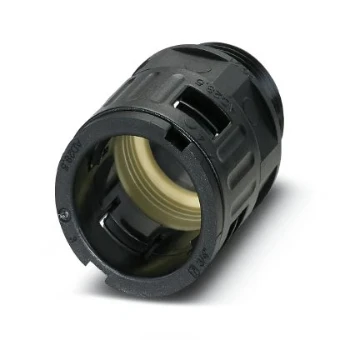

Screw connection, material: PA 6, degree of protection: IP68, color: black, flammability rating in acc. with UL 94: V2
Product specifications
Thread connection size
PG21
Nominal diameter
28.5 mm
Degree of protection (IP)
IP68
Revolving thread
No
Max. outer diameter hose
28.5 mm
Material screw gland
Polyamide (PA)
Nominal size in inch
Other
Type of connection
Other
Thread length
12.5 mm
One-piece
No
With integrated holder
No
Total height
48.5 mm
Total length
48.5 mm
Colour
Black
Approved in combination with protective conduit according to DIN EN 61386-23
No
Approved in combination with protective conduit UR
No
