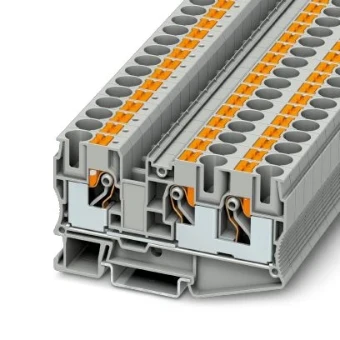

Feed-through terminal block Phoenix Contact
Add to selection
General information
Ordercode YESSS
6023-6992
Product code
3208746
EAN code
4046356643610
Product group
Feed-through terminal block
Brand
Phoenix Contact
Feed-through terminal block
Feed-through terminal block
Product description
Feed-through terminal block, nom. voltage: 1000 V, nominal current: 57 A, connection method: Push-in connection, Rated cross section: 10 mm², cross section: 0.5 mm² - 16 mm², mounting type: NS 35/7,5, NS 35/15, color: gray
Product specifications
Connectable conductor cross section fine-strand without cable end sleeve
0.5 - 16 mm²
Number of levels
1
Number of clamp positions per level
3
Mounting method
DIN rail (top hat rail) 35 mm
Material insulation body
Other
Connectable conductor cross section fine-strand with cable end sleeve
0.5 - 10 mm²
Connectable conductor cross section solid-core
0.5 - 16 mm²
Rated current In
57 A
Rated voltage
1000 V
Type of electrical connection 1
Other
Type of electrical connection 2
Other
Operating temperature
-60 - 105 °C
Explosion-tested version 'Ex e'
Yes
Closing plate required
Yes
Colour
Grey
Internally connected stages
Yes
Width
10.15 mm
Height
88.9 mm
Depth
49.55 mm
