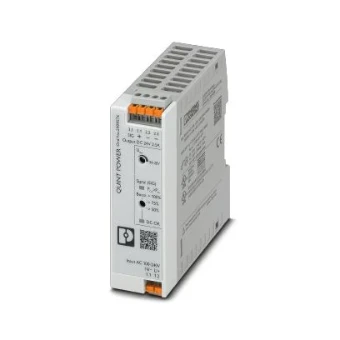

DC-power supply Phoenix Contact
Add to selection
General information
Ordercode YESSS
6023-2785
Product code
2909576
EAN code
4055626356495
Product group
DC-power supply
Brand
Phoenix Contact
Power supply unit
Power supply unit
Product description
Primary-switched power supply unit, QUINT POWER, Push-in connection, DIN rail mounting, input: 1-phase, output: 24 V DC / 2.5 A
Product specifications
Voltage type of supply voltage
AC/DC
Secondary voltage adjustable
Yes
Power output
60 W
Output voltage stabilized
Yes
Stabilized
Yes
Short-circuit-proof
Yes
1st secondary output voltage
24 - 28 V
Max. output current 1
5 A
Nominal value output voltage 1
24 V
Rated supply voltage at AC 50 Hz
100 - 240 V
Degree of protection (IP)
IP20
Nominal value output current 1
2.5 A
Rated supply voltage at AC 60 Hz
100 - 240 V
Rated supply voltage at DC
88 - 350 V
Power consumption
71 VA
Type of electric connection
Other
Rail mounting possible
Yes
Modular version
No
Built-in height
106 mm
Direct mounting possible
No
Width
32 mm
Height
106 mm
Depth
90 mm
Suitable for safety functions
Yes
SIL according to IEC 61508
None
