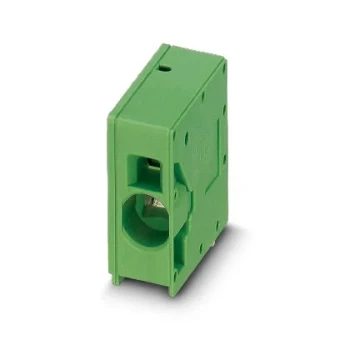

Printed circuit board terminal Phoenix Contact
Add to selection
General information
Ordercode YESSS
6021-7801
Product code
1735778
EAN code
4046356179416
Product group
Printed circuit board terminal
Brand
Phoenix Contact
Type
SPT 16/ 1-H-10,0
PCB terminal block
PCB terminal block
Product description
PCB terminal block, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, product range: SPT 16/..-H, pitch: 10 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear double pinning, Solder pin [P]: 4 mm, number of solder pins per potential: 6, type of packaging: packed in cardboard
Product specifications
Height
34 mm
Connection type conductor
Other
Connectable conductor cross section solid-core
0.75 - 16 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.75 - 16 mm²
Material insulation body
Other
Type of PCB fastening
Connecting contact
