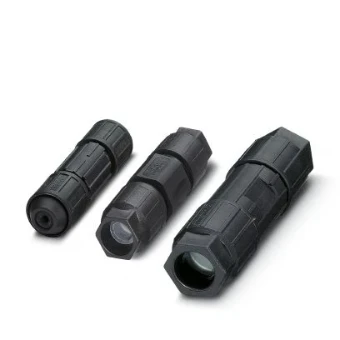

Plug-in connector for plug-in building installation Phoenix Contact
Add to selection
General information
Ordercode YESSS
6021-5076
Product code
1642182
EAN code
4017918951177
Product group
Plug-in connector for plug-in building installation
Brand
Phoenix Contact
Conductor connectors
Conductor connectors
Product description
Conductor connectors, QUICKON connection, number of positions: 3+PE, 0.75 mm² ... 1.5 mm², 500 V, 15 A, black, external cable diameter: 6 mm ... 12 mm, QUICKON fast connection
Product specifications
Rated voltage
500 V
Rated current
15 A
Number of poles
4
Degree of protection (IP)
IP65
Cable diameter
6 - 12 mm
Number of connections per pole
1
Pole codification
1, 2, 3, PE
Mechanical coding
No
Colour coding/contact insert
Black
Locking mechanism
None
With strain relief
Yes
Material housing
Other
Halogen free
No
Surface treatment contacts
Other
Rated surge voltage
6 kV
Length
89.3 mm
Height
24.33 mm
Width
26 mm
Continuity resistor
0.005 mOhm
Product information
