Device connection for plug-in building installation Phoenix Contact
Add to selection
General information
Ordercode YESSS
6021-2472
Product code
1582557
EAN code
4046356661515
Product group
Device connection for plug-in building installation
Brand
Phoenix Contact
Panel feed-through
Panel feed-through
Product description

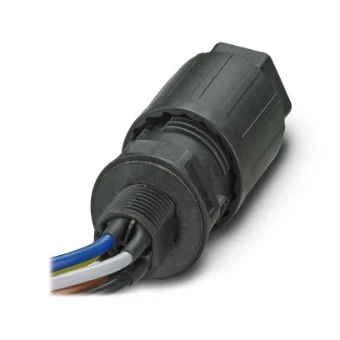

Panel feed-through, QUICKON connection, number of positions: 4+PE, 1 mm² ... 2.5 mm², 690 V, 20 A, black, with QUICKON nut, external cable diameter: 6 mm ... 11 mm, assembly thread: M25, Single wires (welded-on), 2.5 mm², wires cut flat at the end, cable length: 0.5 m
Product specifications
Rated voltage
690 V
Rated current
20 A
Number of poles
5
Degree of protection (IP)
IP66
Connection size thread
M25
Number of connections per pole
1
Mechanical coding
Yes
Colour coding/contact insert
Black
Colour of the separate adapter piece
Black
Colour housing
Black
Material housing
Other
Halogen free
No
Surface treatment contacts
Silver-plated
Rated surge voltage
6 kV
Length
88.85 mm
Height
34.6 mm
Width
34.6 mm
Continuity resistor
0.003 mOhm
