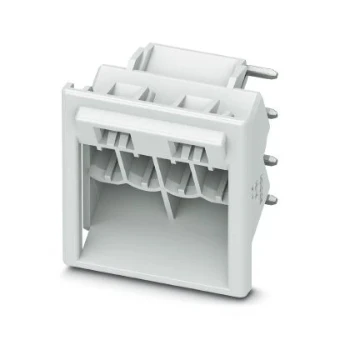

Printed circuit board connector Phoenix Contact
Add to selection
General information
Ordercode YESSS
6022-7541
Product code
2203903
EAN code
4055626466088
Product group
Printed circuit board connector
Brand
Phoenix Contact
Type
ICC25-H/4R5,0-7035
PCB header
PCB header
Product description
PCB headers, nominal cross section: 2.5 mm², color: light grey, nominal current: 16 A, rated voltage (III/2): 320 V, type of contact: Male connector, number of potentials: 4, number of rows: 1, number of positions: 4, number of connections: 4, product range: ICC..-H/..R5,0, pitch: 5 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, Pin connector pattern alignment: Standard, locking: Snap-in locking, mounting: without, type of packaging: Box packaging, Product with pin output on right side
Product specifications
Connector model
Fixed connector
Contact type
Pin
Material of contact surface
Tin
Type of electric connection
Other
Material insulation body
Other
Housing colour
Other
Type of fastening
Other
