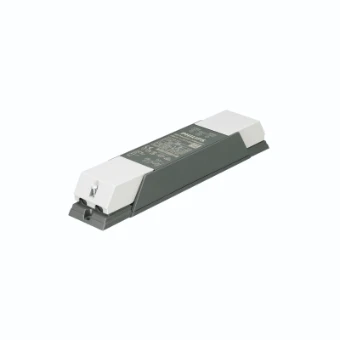

Ballast Philips HID-PrimaVision Mini CDM
Add to selection
General information
Ordercode YESSS
6121-7428
Product code
8711500881632
EAN code
8711500881632
Product group
Ballast
Brand
Philips
Serie
HID-PrimaVision Mini CDM
Type
PVM020ICDMNG
HID-PV m 20 /I CDM 220-240V 50/60Hz
HID-PV m 20 /I CDM 220-240V 50/60Hz
Product description
PHI HID-PV m 20 /I CDM 220-240V 50/60Hz
Product specifications
Model
Electronic
Multiwatt model
No
Dimming 0-10 V
No
Dimming 1-10 V
No
Nominal voltage
220 - 240 V
Dimming DALI
No
Suitable for lamp power (1 lamp)
20 - 20 W
Dimming DSI
No
Dimming DMX
No
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Length
234.7 mm
Dimming LineSwitch
No
Width
49.4 mm
Dimming manufacturer's proprietary system
No
Height
34 mm
Dimming mains voltage modulation
No
Housing
Plastic housing
Dimming phase cut-off
No
Protection class
I
Dimming phase cut-on
No
For lamp type HI
Yes
Dimming programmable
No
For lamp type HM
No
Dimming RF
No
For lamp type HS
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
For lamp type LS
No
Dimming Zigbee
No
Dimming with push-button
No
For lamp type T7
No
For lamp type T16
No
For lamp type T16-R
No
For lamp type T26
No
For lamp type T38
No
For lamp type T-R
No
Suitable for number of lamps
1 - 1
For lamp type T-U
No
Suitable for lamp power
20 - 20 W
For lamp type TC-D
No
For lamp type TC-DD
No
For lamp type TC-DEL
No
For lamp type TC-F
No
For lamp type TC-L
No
For lamp type TC-QEL
No
For lamp type TC-S
No
For lamp type TC-SEL
No
For lamp type TC-T
No
For lamp type TC-TEL
No
With strain relief
Yes
Degree of protection (IP)
IP20
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operation by Bluetooth
No
Compatible with Casambi
No
Product information
