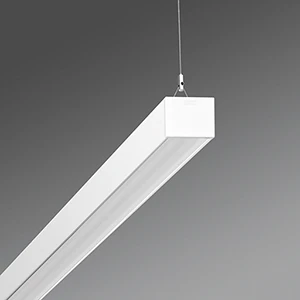

Pendant luminaire Regiolux
Add to selection
General information
Ordercode YESSS
6069-9899
Product code
60513026690
EAN code
4020863319244
Product group
Pendant luminaire
Brand
Regiolux
Product specifications
Material housing
Steel
Direct-/indirect proportion separately controllable
No
Degree of protection (IP)
IP20
Lamp type
LED not exchangeable
Lamp holder
None
Suitable for number of lamps
1
Type of control gear
LED operating device current-controlled
With control gear
Yes
Voltage type
AC
Nominal current
283 - 283 mA
Dimming 0-10 V
No
Suitable for emergency lighting
No
Nominal voltage
230 - 230 V
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DMX
No
Dimming programmable
Yes
Dimming DSI
No
Colour housing
White
Dimming RF
No
Suitable for light line configuration
Yes
Dimming potentiometer (integrated)
No
Dimming GPRS
No
Material cover
Plastic, structured
Dimming manufacturer's proprietary system
No
Suitable for workplace according to EN 12464-1
Yes
Dimming mains voltage modulation
No
Type of grid
None
Dimming phase cut-off
No
Dimming phase cut-on
No
Reflector
None
Dimming Touch and Dim
No
Light sharing
Symmetric
Dimming Zigbee
No
Dimming with push-button
No
Light outlet
Direct/indirect
Light distributor
Other
Length
1408 mm
Width
85 mm
Colour of light
White
Colour temperature
4000 - 4000 K
With suspension
No
Colour rendering index CRI
80-89
Pendant length
400 - 1900 mm
Protection class
I
Impact strength
IK02
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Rated life time L70/B50 at 25 °C
100000 h
With light source
Yes
Degree of protection (NEMA)
Other
Filament test according to IEC 60695-2-11
None
Suitable for lamp power
65 - 65 W
Max. system power
65 W
Height/depth
72 mm
Type of wiring
Suitable for through wiring
Number of poles
5
Conductor cross section
1.5 mm²
Connection type
Push-in clamp
Exchangeable control gear
No
Dimming DALI-2
Yes
Colour consistency (McAdam ellipse)
SDCM3
Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq)
80 %
Failure rate at median useful life of 50,000 h at 25 °C ambient (tq)
10 %
Colour temperature adjustable
No
Luminous flux adjustable
Continuously variable
Beam angle adjustable
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Energieeffizienzklasse der Lichtquelle nach EU-Richtlinie 2019/2015
C
Max. number of luminaires per miniature circuit breaker B16
24
Max. number of luminaires per miniature circuit breaker C16
40
Operation by Bluetooth
No
