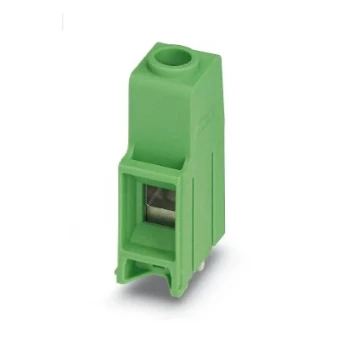

Printed circuit board terminal Phoenix Contact
Add to selection
General information
Ordercode YESSS
6022-6699
Product code
1993776
EAN code
4046356037617
Product group
Printed circuit board terminal
Brand
Phoenix Contact
PCB terminal block
PCB terminal block
Product description
PCB terminal block, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm², number of potentials: 1, number of rows: 1, number of positions per row: 1, product range: MKDS 10 HV, pitch: 10.16 mm, connection method: Screw connection with tension sleeve, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green, Pin layout: Linear back pinning, Solder pin [P]: 5 mm, number of solder pins per potential: 2, type of packaging: packed in cardboard
Product specifications
Height
35.8 mm
Connection type conductor
Screw connection
Connectable conductor cross section solid-core
0.5 - 16 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.5 - 16 mm²
Connectable conductor cross section multi-wired
0.5 - 6 mm²
Material insulation body
Other
Operating temperature
-40 - 100 °C
Type of PCB fastening
Connecting contact
