Printed circuit board terminal Phoenix Contact
Add to selection
General information
Ordercode YESSS
6022-6428
Product code
1984840
EAN code
4017918946395
Product group
Printed circuit board terminal
Brand
Phoenix Contact
PCB terminal block
PCB terminal block
Product description

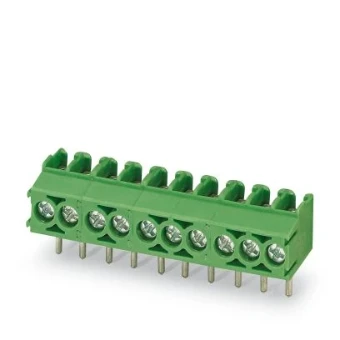

PCB terminal block, nominal current: 17.5 A, rated voltage (III/2): 200 V, nominal cross section: 1.5 mm², number of potentials: 10, number of rows: 1, number of positions per row: 10, product range: PT 1,5/..-V, pitch: 3.5 mm, connection method: Screw connection with wire protector, mounting: Wave soldering, conductor/PCB connection direction: 90 °, color: green, Pin layout: Linear pinning, Solder pin [P]: 4.5 mm, number of solder pins per potential: 1, type of packaging: packed in cardboard
Product specifications
Height
12.05 mm
Connection type conductor
Screw connection
Connectable conductor cross section solid-core
0.2 - 1.5 mm²
Connectable conductor cross section fine-strand without cable end sleeve
0.2 - 1.5 mm²
Connectable conductor cross section multi-wired
0.2 - 0.34 mm²
Material insulation body
Other
Operating temperature
-40 - 100 °C
Type of PCB fastening
Connecting contact
Product information
